Sundström Respirators are Leaders in Comfort & Performance

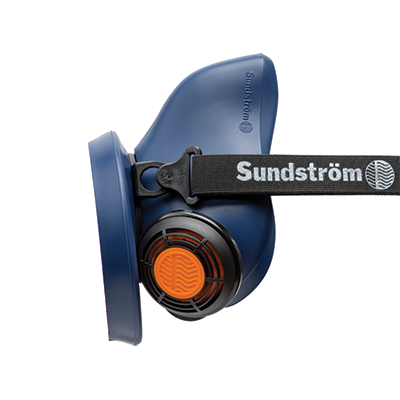

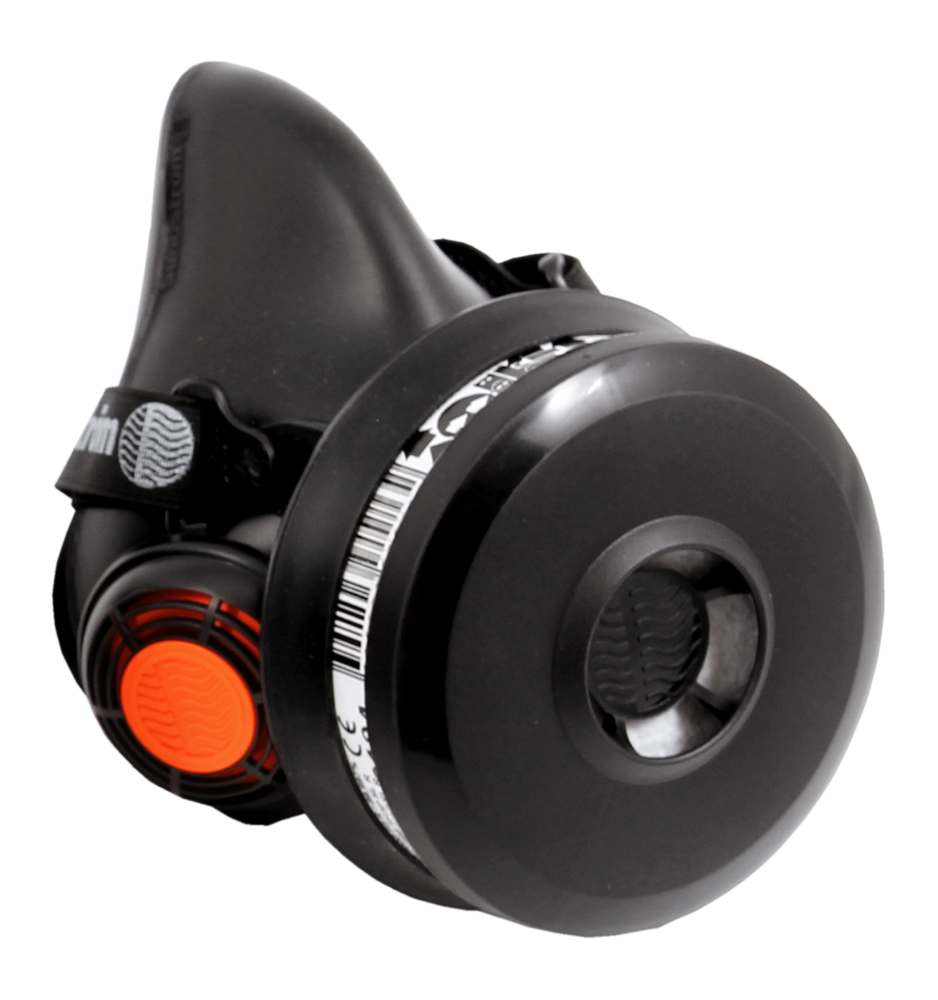

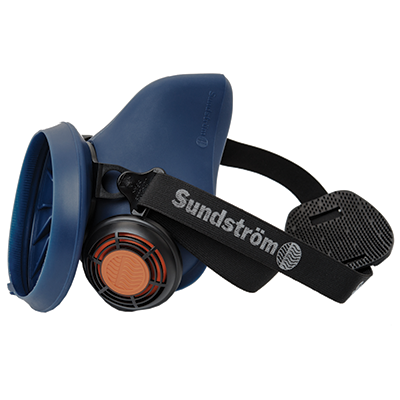

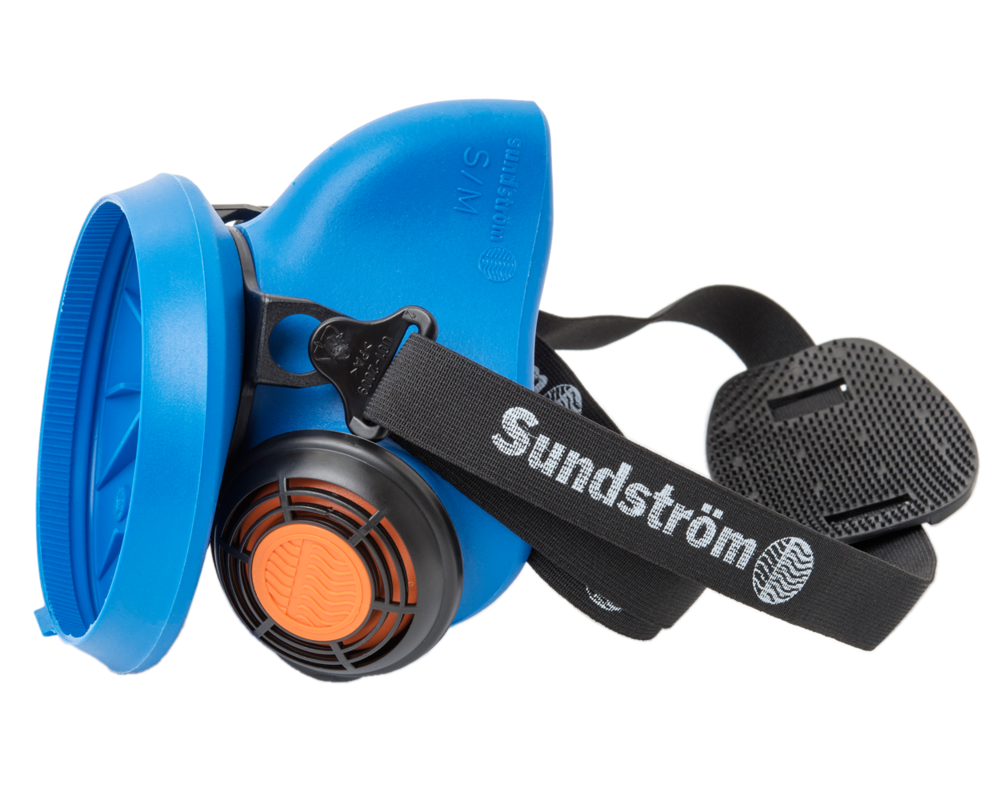

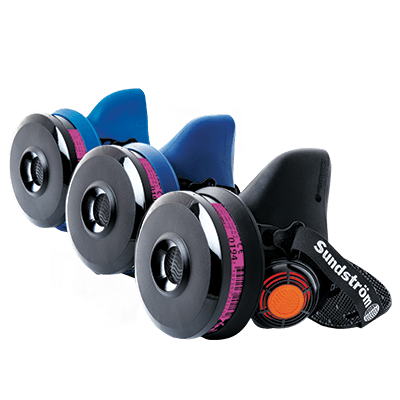

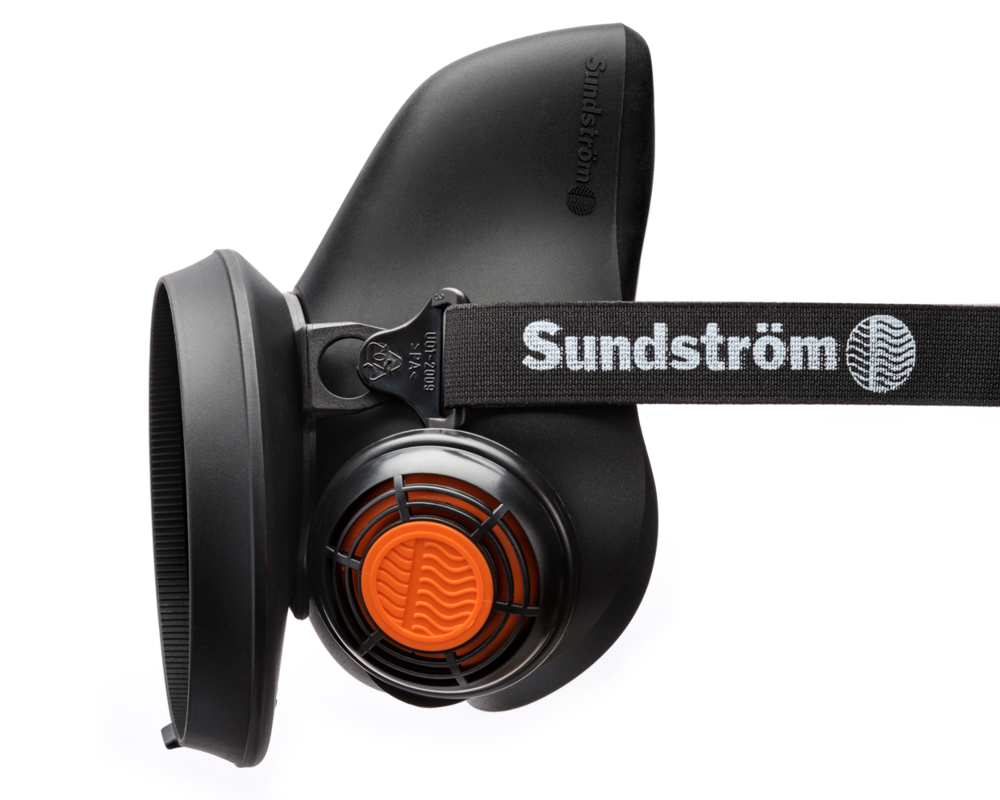

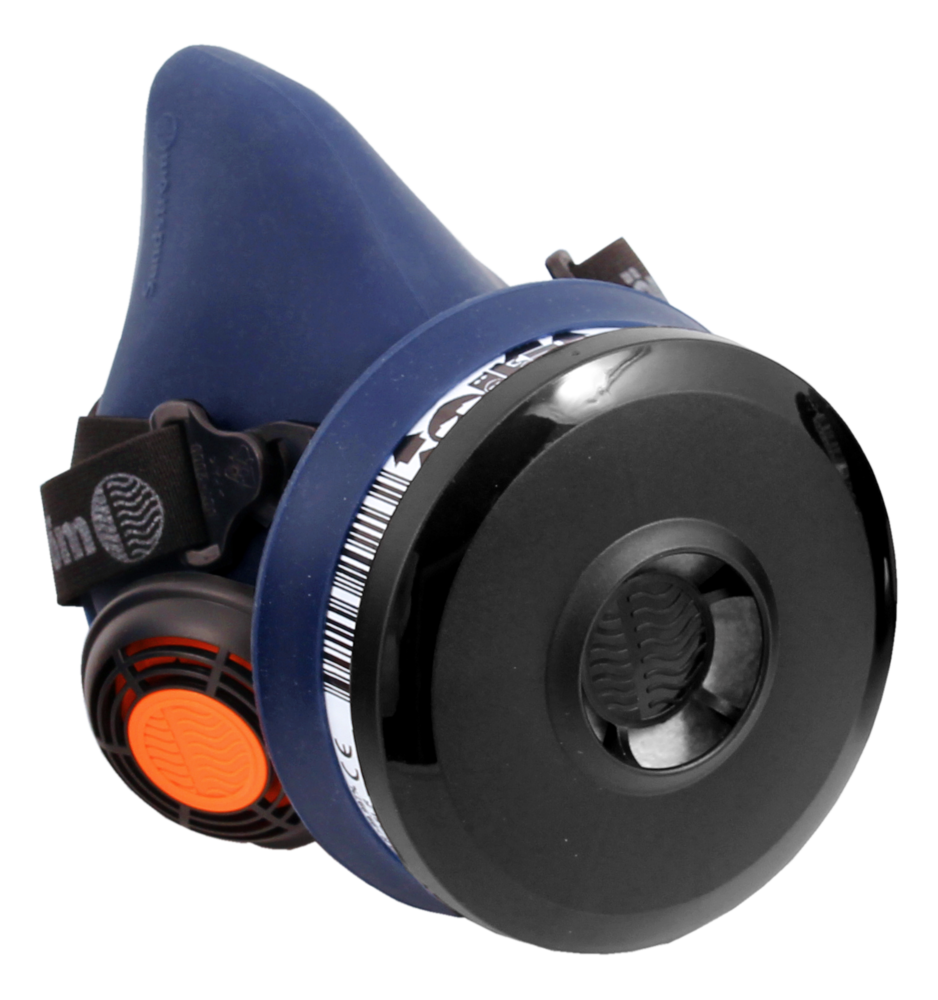

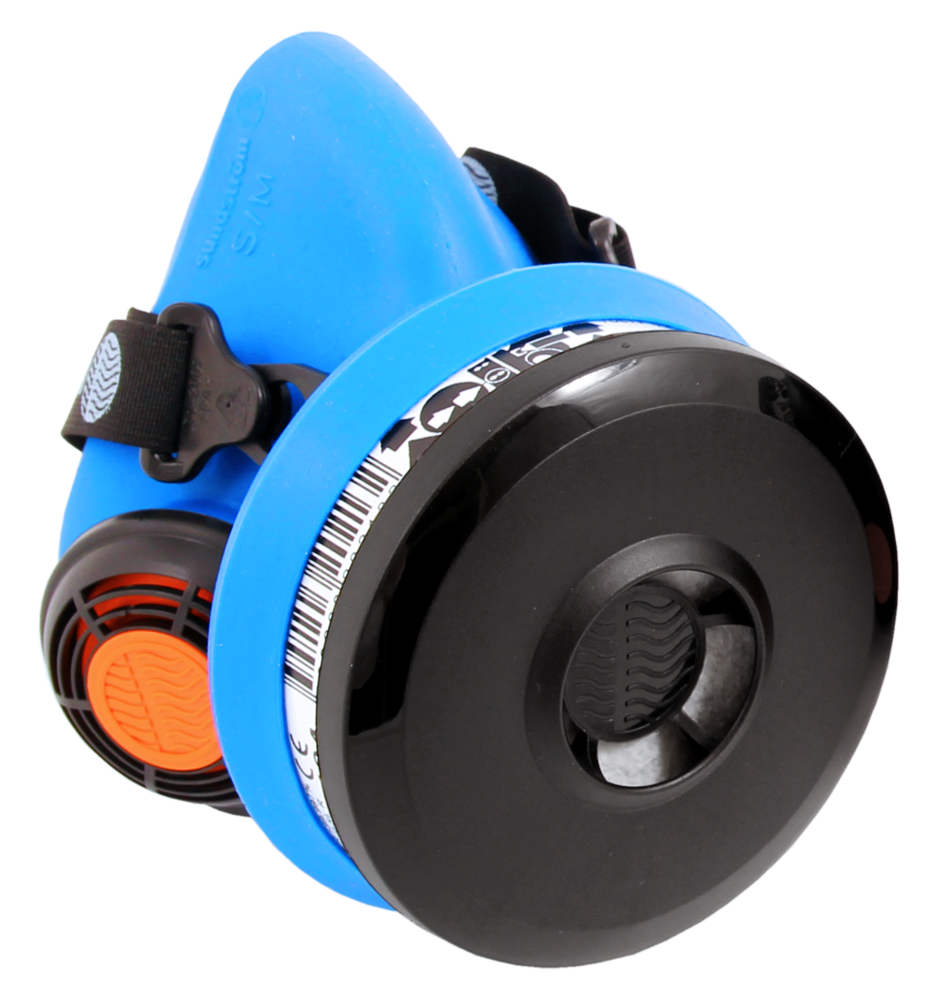

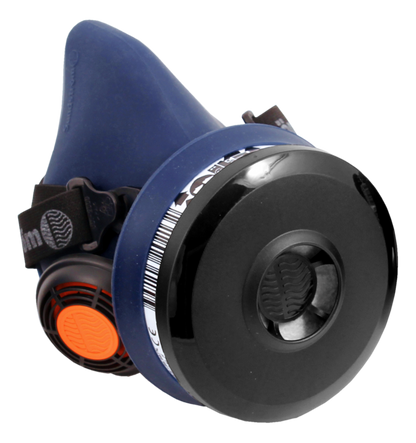

SR 100 HALF MASK

Half mask with excellent fit, high protection level and very good breathing comfort for use in the toughest work environments.

The SR 100 half mask is an Air Purifying Respirator (APR) made of silicone in three sizes, i.e. S/M, M/L and L/XL. The mask is equipped with two exhalation valves, which ensures very low exhalation resistance. The valve covers with partitions effectively protect the exhalation membrane against dust and paint mist. The material and pigment of the mask body are approved by FDA and BGA for foods, which minimizes the risk of contact allergies. The easily adjustable elastic head harness straps of the mask are designed as a V-shaped loop and have a large dished crown plate, which contributes towards a comfortable and safe fit. The mask is used either as an APR in combination with filters and/or cartridges from the Sundström range, or in combination with the SR 307 compressed air attachment, this combination is called a Type C Continuous Flow Supplied Air Respirator (SAR). A pre-filter holder for simple checking of the performance are supplied. Best stored in box SR 230 or storage case SR 339.

Common Respirator Applications

When choosing the right respiratory protection system, it is important to know precisely what work the user will be undertaking and the risks involved. Environmental factors must also be considered and whether there are specific regulations that have to be followed. Below are some common uses for a full face respirator, however it's important to know your hazard type and concentration levels of the hazardous particulate, chemical, gas or vapour. If the atmosphere is immediately hazardous or dangerous to life or health you must not use a full face mask with filters. Supplied air or a self contained breathing apparatus is required. Full face masks should only be used with hazards that do not exceed an assigned protection factor of 50.

Respirator for:

• Spray Paint
• Mold and Dust
• Concrete Dust
• Sanding
• Organic vapours
• Welding Fumes
• Asbestos
• Mold
• Chemicals

Specifications

• Colour - Blue
• Shelf Life - 10 Years
• Country of Manufacturer - Sweden
• Operating Temp -  (-10 to +55 °C)
• Storage Temp  - (-20 to +40 °C)
• Assigned Protection Factor - 50
• Approvals - NIOSH 42 CFR part 84
• Materials - Silicone

 Full Face Mask Accessories

• H09-0112 - Storage Bag
• H09-0321 - Protective Hood
• H09-3021 - Storage Box
• H09-1012- Protective Hood
• T01-1202 - Test Adapter
• T01- 1219 - Small Talk

Replacement Parts

• R01-0605 Pre Filter Holder
• R01-2001 Head Harness Replacement
• R01-2002 Cradle Style Head Harness Replacement
• R01-2004 Valve Replacement Kit
• R01-2005 -Full Respirator Service Kit
• R09-0101 ID Label
• R01-2006 Exhalation Valve Cap

Cartridge Options

• H02-0121 SR 221 Prefilter
• H02-1321 SR 510 Particulate filter P100 / HE
• H02-2121 SR 218-6 OV Cartridge
• H02-3621 SR 231 CL/HC/SD/FM Cartridge
• H02-3721 SR 232 OV/SD/CL/HC/HF Cartridge
• H02-4321 SR 229 AM/MA Cartridge
