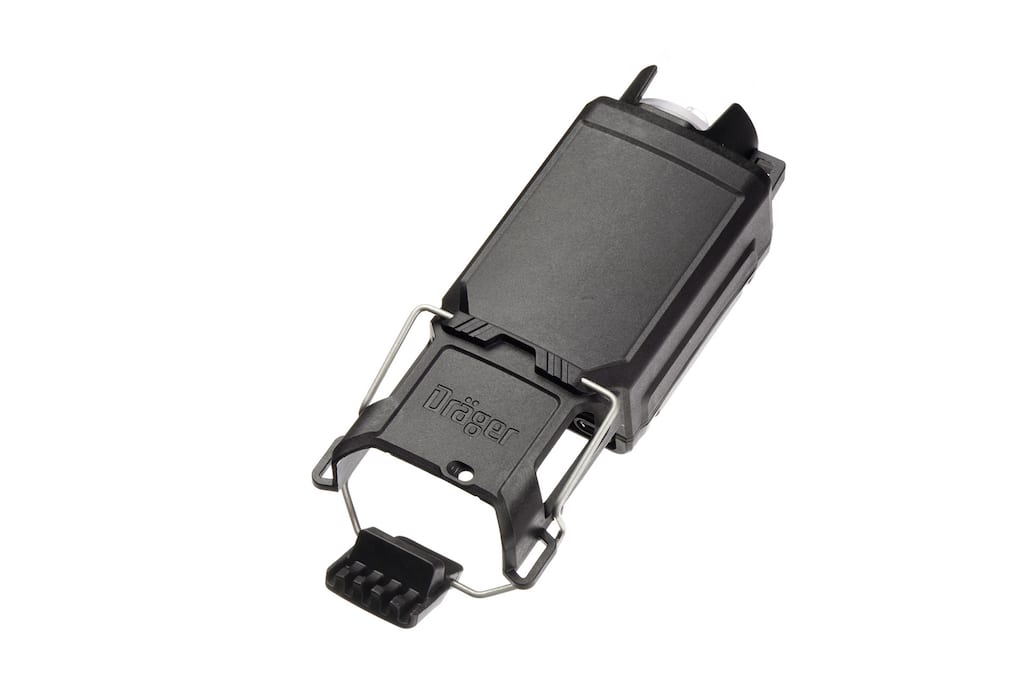

The Dräger X-am® Mark II Pump is an external pump for the Dräger X-am® 2500, 5000, and 5600 portable gas detectors—designed for clearance measurement, for example in tanks and shafts. The pump automatically switches on when it is connected to a running X-am® device. The change from pump mode to diffusion mode is fast and easy.
Easy to use
The pump is attached onto the X-am 2500/2800 and X-am 5000/5600/5800 and fastened with a clip. Pumping starts automatically once pump and running gas detection device are connected. The pump turns off automatically once it is removed from the device. Using the X-am with the pump has no effect on the measuring performance for standard gases.
Charging via USB
The pump battery can be recharged using the micro USB port. A standard cellphone charger can be used for connecting. The charge status is indicated by an LED on the pump. A full charge requires approximately six hours.
Handy and robust
The pump’s easily manageable 6.9 inch/17.5 cm device height and light weight permit easy carrying and storage. The Dräger X-am pump is dust and water resistant according to the IP67 protection classification. It performs reliably even at temperatures down to -40°C/-40°F. The battery is solid cast to protect against damage due to dropping or impact.
Effective range of measuring results: with explosion protection
The pump can reach the ambient atmosphere in inaccessible places—up to a distance of 45 m/147 feet, e.g. in channels, shafts, or tank systems. The pump has been optimized for hoses with a diameter of 3 mm/0.12 in—for fast response times and low power consumption.
Because the Drager X-am 2500/5000/5600 detector and the pump have an explosion protection approval for Ex Zone 0, you are assured secure and continued monitoring of enclosed areas.
Long operating time for deployments
The pump is not only highly resilient on the outside but also inside. Operating time is at least 20 hours of continuous monitoring, depending on type of application and operating temperature. The operating time of the X-am is not decreased when the pump is in operation. Moreover, the entire pump operating time can be evaluated using CC-vision software.
Data logger
Pump operating time, charge status, battery warnings, and flow alarm are displayed on the Dräger X-am and stored in the data logger. This makes it possible to display the results of the clearance measurements separately from the evaluations of personal monitoring.
