Description

SteelGrip® Temporary Cable HLL System and Stanchions with 12-24" Beam Clamps. Available in 4 lengths, 30ft, 60ft, 80ft, 100ft.

Features

• Complete Multi-span Temporary Cable HLL System
• I-beam stanchions with a 4" to 12",  4" to 18", or 4" to 24" clamping range.
• 3/8" galvanized steel cable with one-end terminated and thimbled
• Features stainless steel coil energy absorbers and connecting carabiners
• In-line tension indicator included with galvanized steel shackles
• The system also includes wire rope clips and tensioning turnbuckle
• Cable HLL System meets OSHA 1926.502 and 1910.140 regulations

Cable Lengths

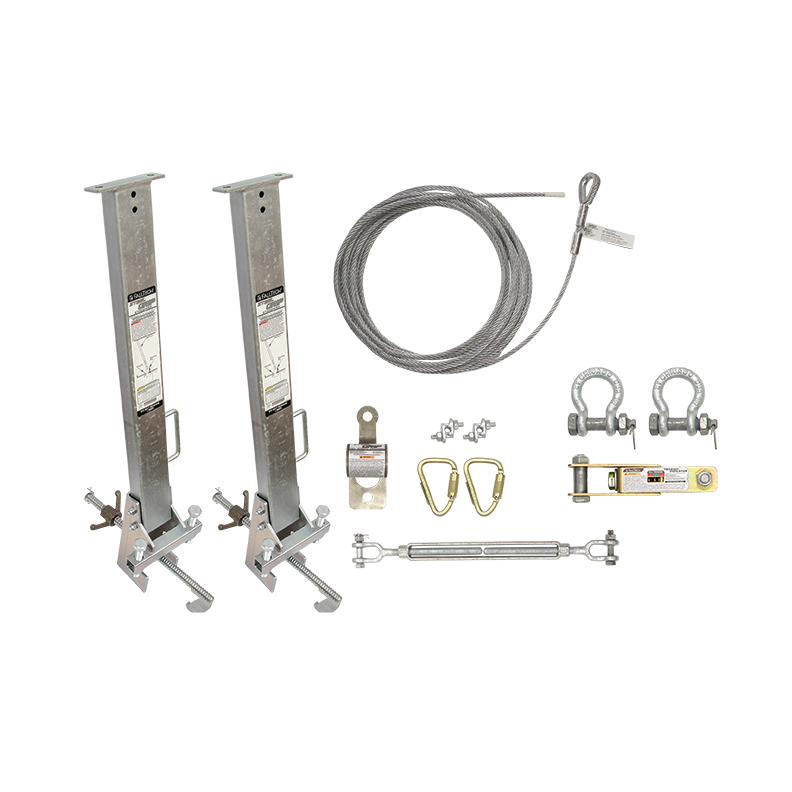

• 30ft- Includes two I-beam stanchions; 1 stainless steel coil energy absorber, 2 connecting carabiners; and 2 galvanized steel shackles for the inline tension indicator

• 60ft- Includes two I-beam stanchions; 1 stainless steel coil energy absorber, 2 connecting carabiners; and 2 galvanized steel shackles for the inline tension indicator

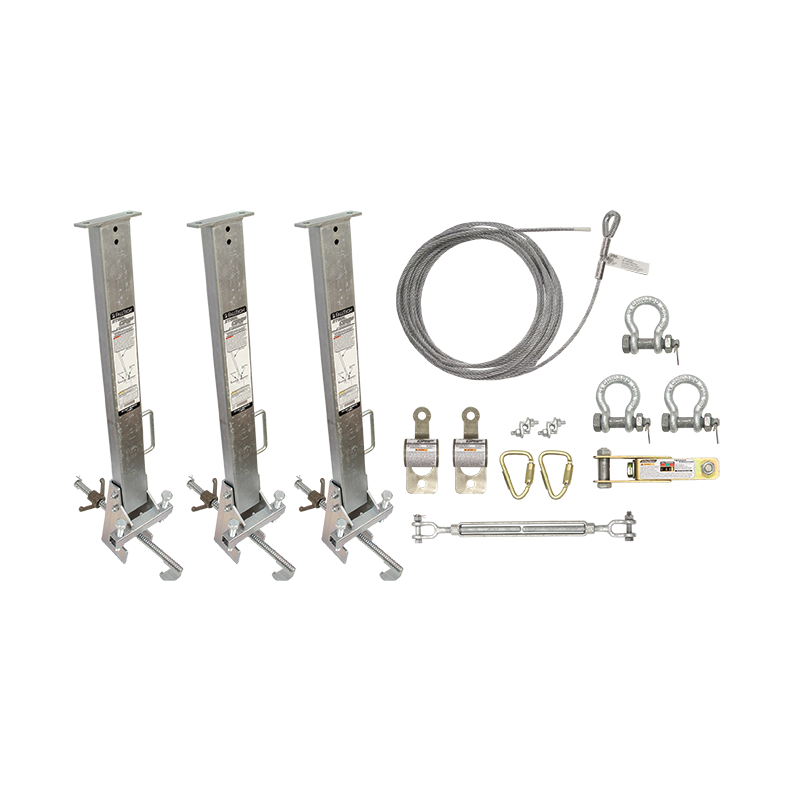

• 80ft-  Includes three I-beam stanchions; 2 stainless steel coil energy absorbers and 2 connecting carabiners; and 3 galvanized steel shackles for the inline tension indicator

• 100ft-  Includes three I-beam stanchions; 2 stainless steel coil energy absorbers and 2 connecting carabiners; and 3 galvanized steel shackles for the inline tension indicator

Product Specifications

• 4-24" clamp range
• 3/8" galvanized steel cable
• Cable; 3/8" galvanized steel; 5,000 lb min. static strength
• Stanchions; Plated carbon steel post, base and clamp; 8,000 lb min. static strength
• Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
