Description

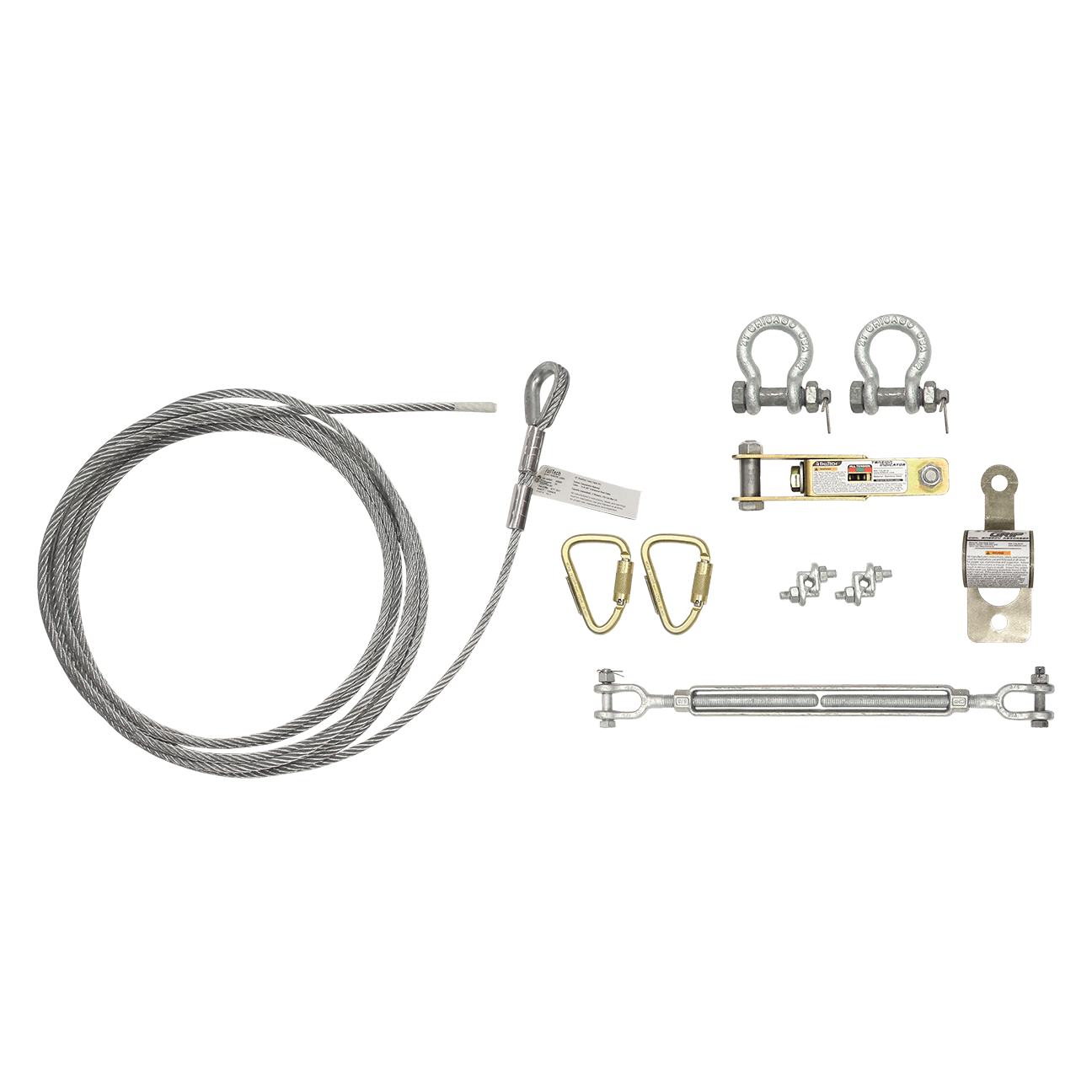

SteelGrip® Single-span Temporary Cable HLL Assembly without Anchors

Features

• SteelGrip® Cable HLL Assembly, no anchors
• 3/8" galvanized steel cable with one-end terminated and thimbled.
• Features 1 stainless steel coil energy absorber and 2 connecting carabiners
• In-line tension indicator included with 2 galvanized steel shackles
• The system also includes wire rope clips and tensioning turnbuckle
• User-supplied end-point anchors required
• Cable HLL System meets OSHA 1926.502 and 1910.66 regulations

Product Specifications

• 3/8" galvanized steel cable
• Cable; 3/8" galvanized steel; 5,000 lb min. static strength
• Energy Absorber; 304 Stainless Steel
• Carabiners; Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

• Static Strength; 5,000 lb min.
• OSHA User Capacity; 310 lb max. per user; 2 users max. per single span
