Description

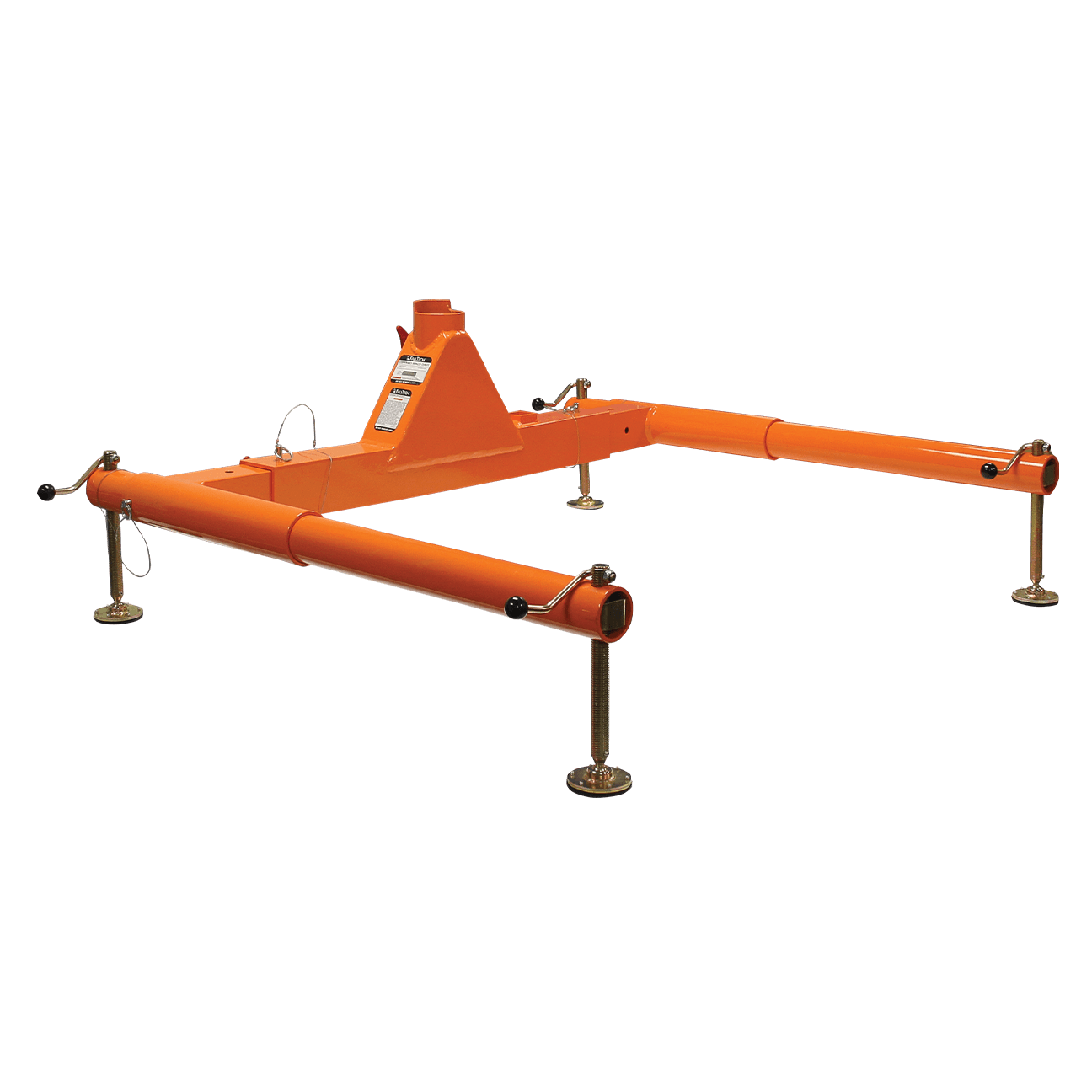

3 Piece Portable Davit Base for 12" to 29" Systems

Features

• Base width adjusts from 38" to 65" to fit a wide range of openings
• Modular design compatibility with offset davit arms and mast extensions.
• 3pc base includes integral bullseye level and tool-free height adjustment
• Lightweight powder-coated aluminum combined with alloy steel for long life and durability
• Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Fits all masts and 12" to 29" offset arm
• Powder coated 6061 aluminum and plated steel
• Portable Base
• PVC pipe
• Sleeve Insert
• Rescue Static Strength; 5,000 lb min.
• Entry/Egress Static Strength; 1,800 lb min.
• Rescue User Capacity; 2 users, 310 lb max. for each person
• Entry/Egress Capacity; 1 user, 310 lb max.
