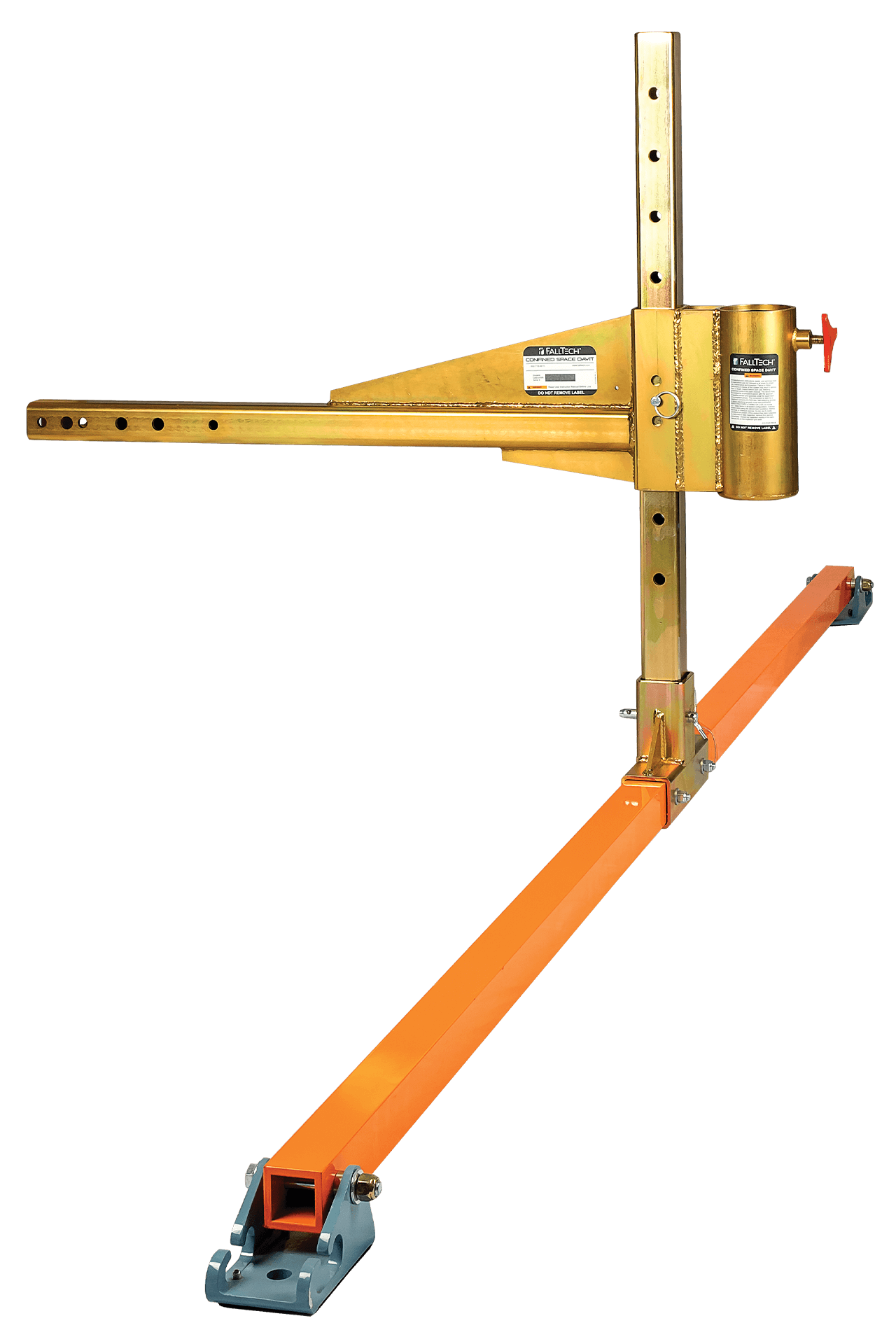

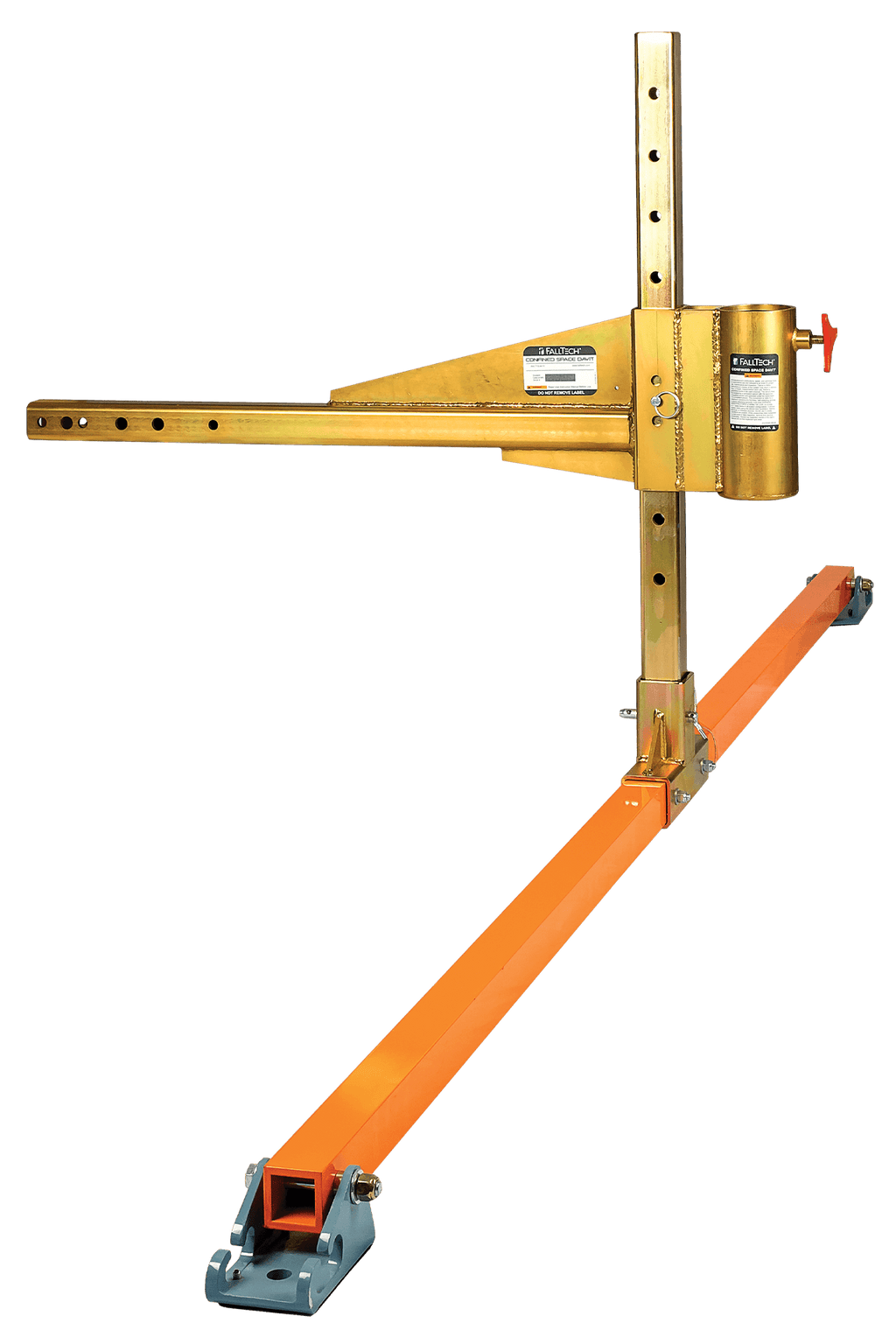

3 Piece Vehicle Hitch-mount Base for 24" to 44" Systems

Description

3 Piece Vehicle Hitch-mount Base for 24" to 44" Systems

Features

• Installs to Class 3 minimum vehicle trailer hitch with 2" square receiver
• Steel hitch bar features PVC mast sleeve insert and mast securing handscrew.
• The horizontal foot bar includes two pivoting feet and a vertical T-bar bracket for improved stability
• Two detent pins quickly connect the foot bar, vertical post and hitch bar
• 11" to 36" height adjustment range provided in 3" increments
• Constructed with lightweight powder-coated aluminum and plated alloy steel components
• Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Fits all masts and 24" to 44" offset arm
• Vehicle Hitch-mount Base; Powder-coated 6061 aluminum and plated steel
• Sleeve Insert; PVC pipe
• Rescue Static Strength; 5,000 lb min.
• Entry/Egress Static Strength; 1,800 lb min.
• Rescue User Capacity; 2 users, 310 lb max. for each person
• Entry/Egress Capacity; 1 user, 310 lb max.
