Description

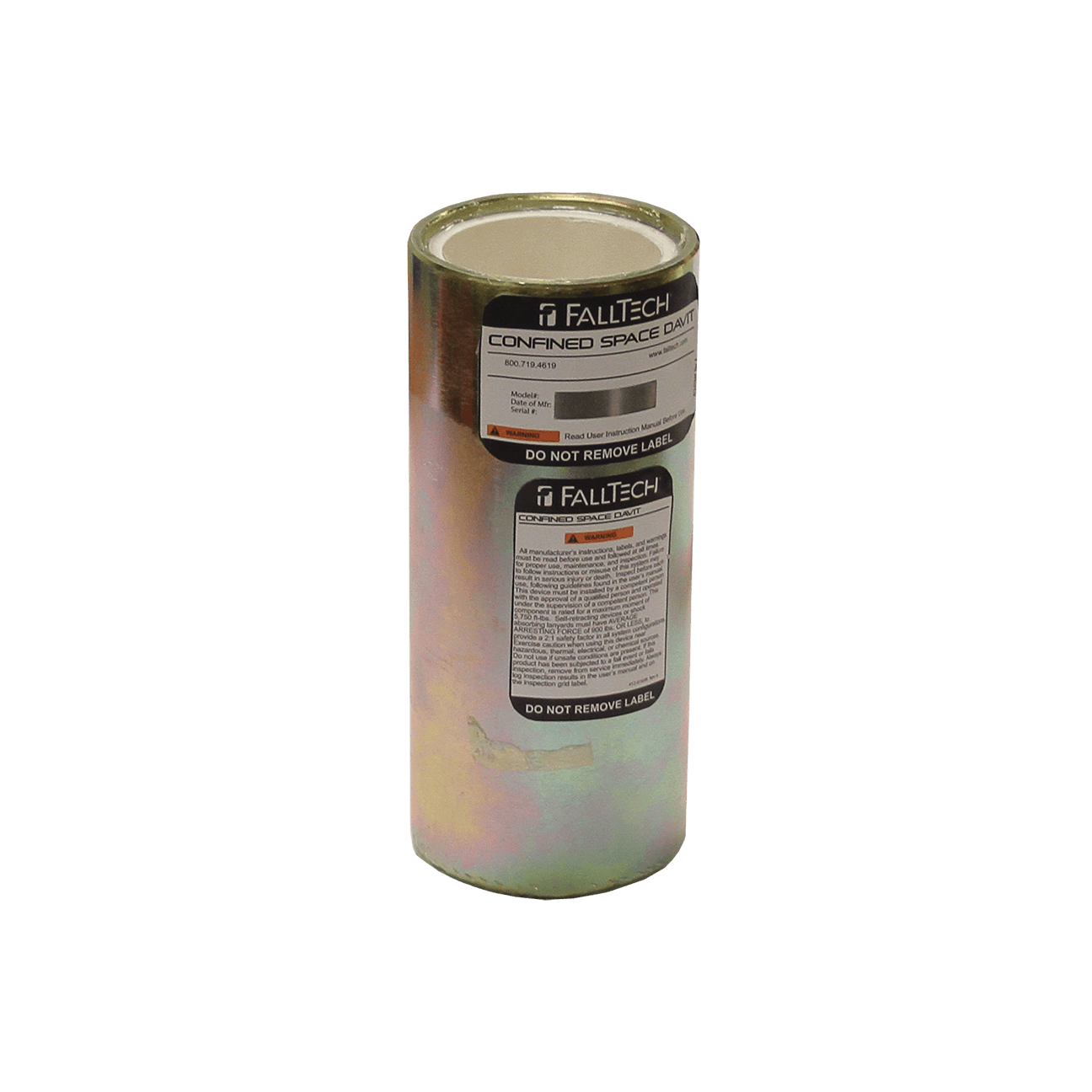

Core-mount Plated Steel Slip-in Fixed Davit Base

Features

• Permanently installed davit base solution is ideally suited for recurrent access locations
• Slip-in design for 4" core hole in existing steel and concrete installation.
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment

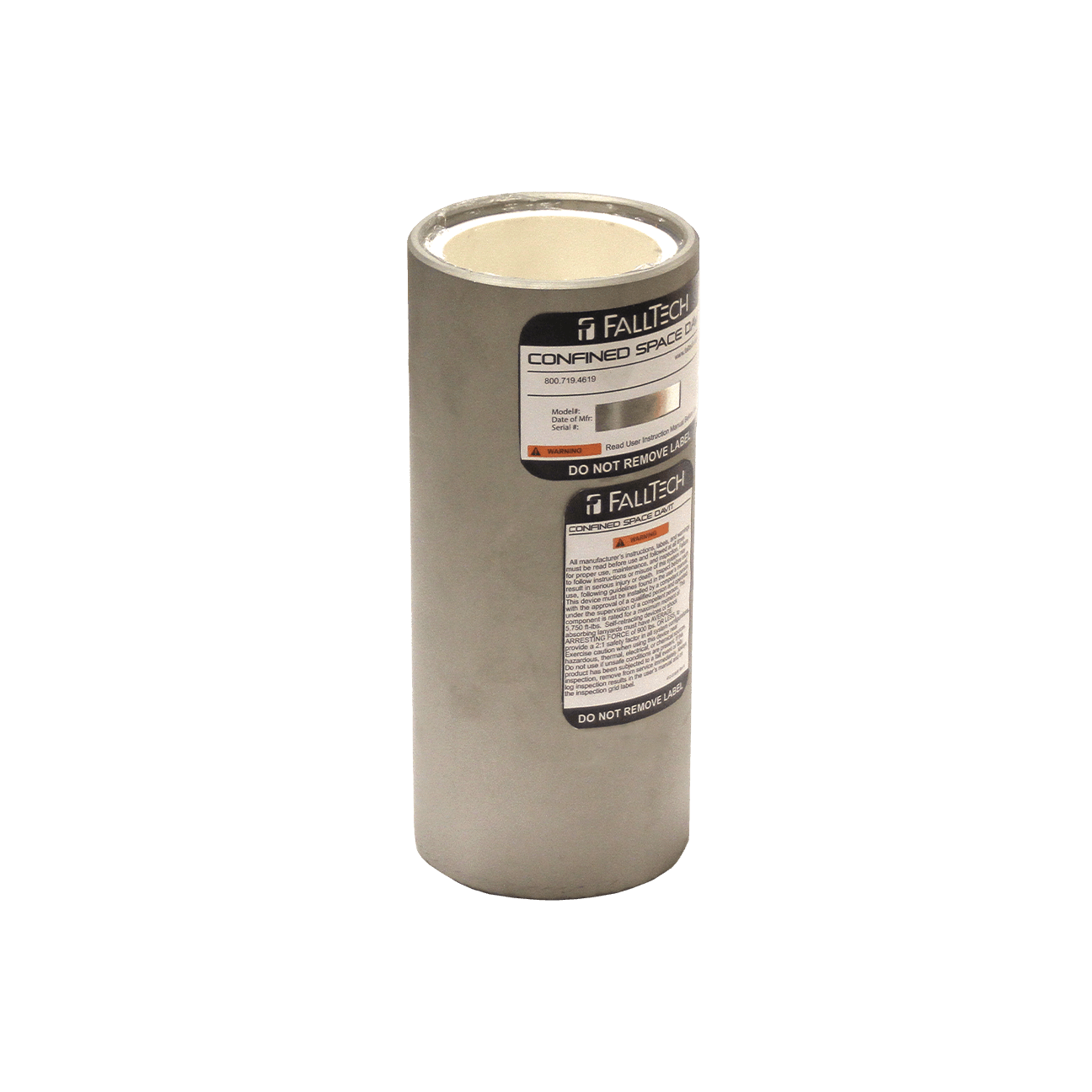

• Plated steel construction throughout; also available in stainless steel
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Plated or stainless steel construction
• Davit Base; Plated carbon steel or stainless steel
• Sleeve Insert; PVC pipe
• Rated Capacity; 620 lb at minimum 4:1 design factor
• Mast Moment Proof Load; 6,167 ft. lb
• Mast Rotation; 360°
