Floor-mount Plated Steel Bolt-on Fixed Davit Base

Description

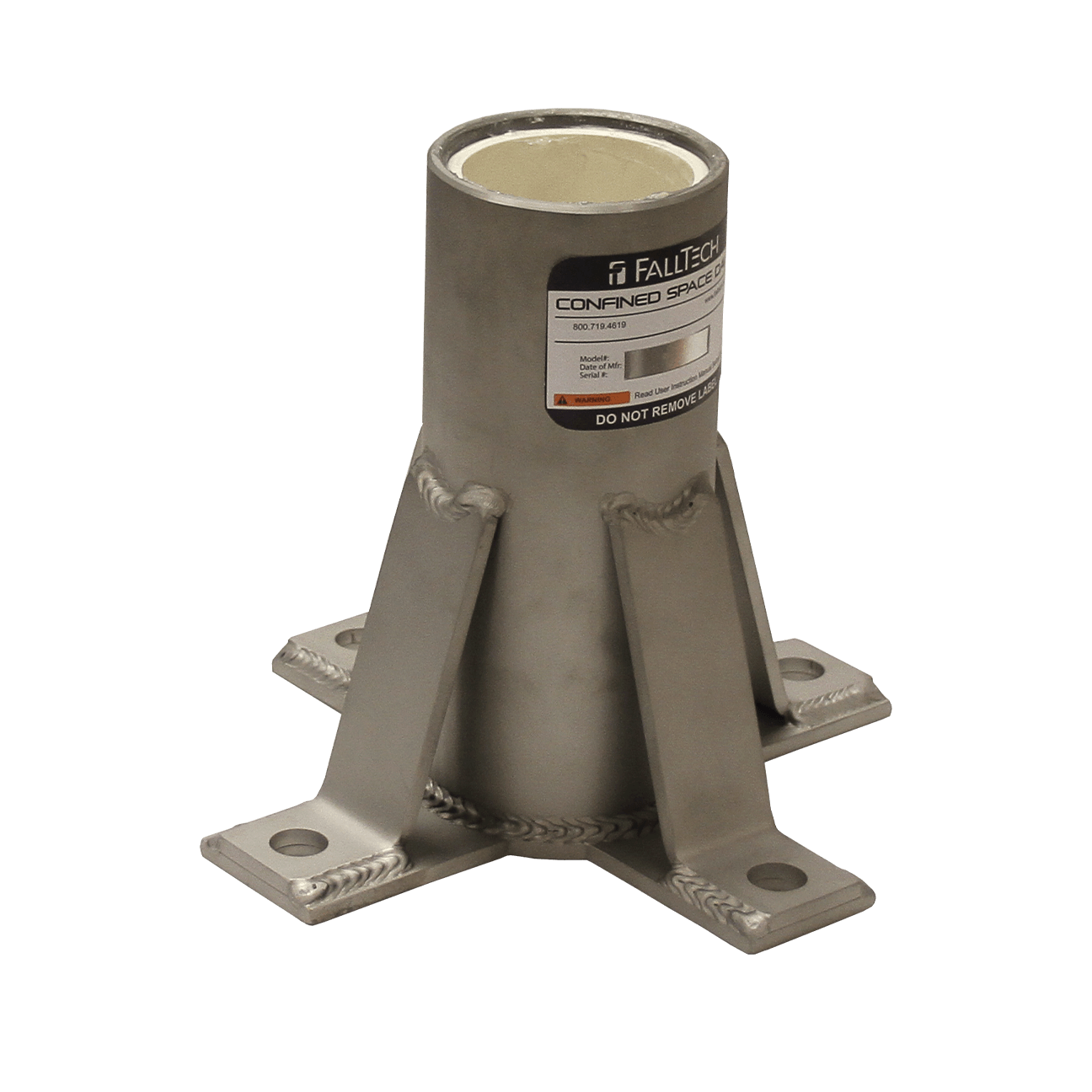

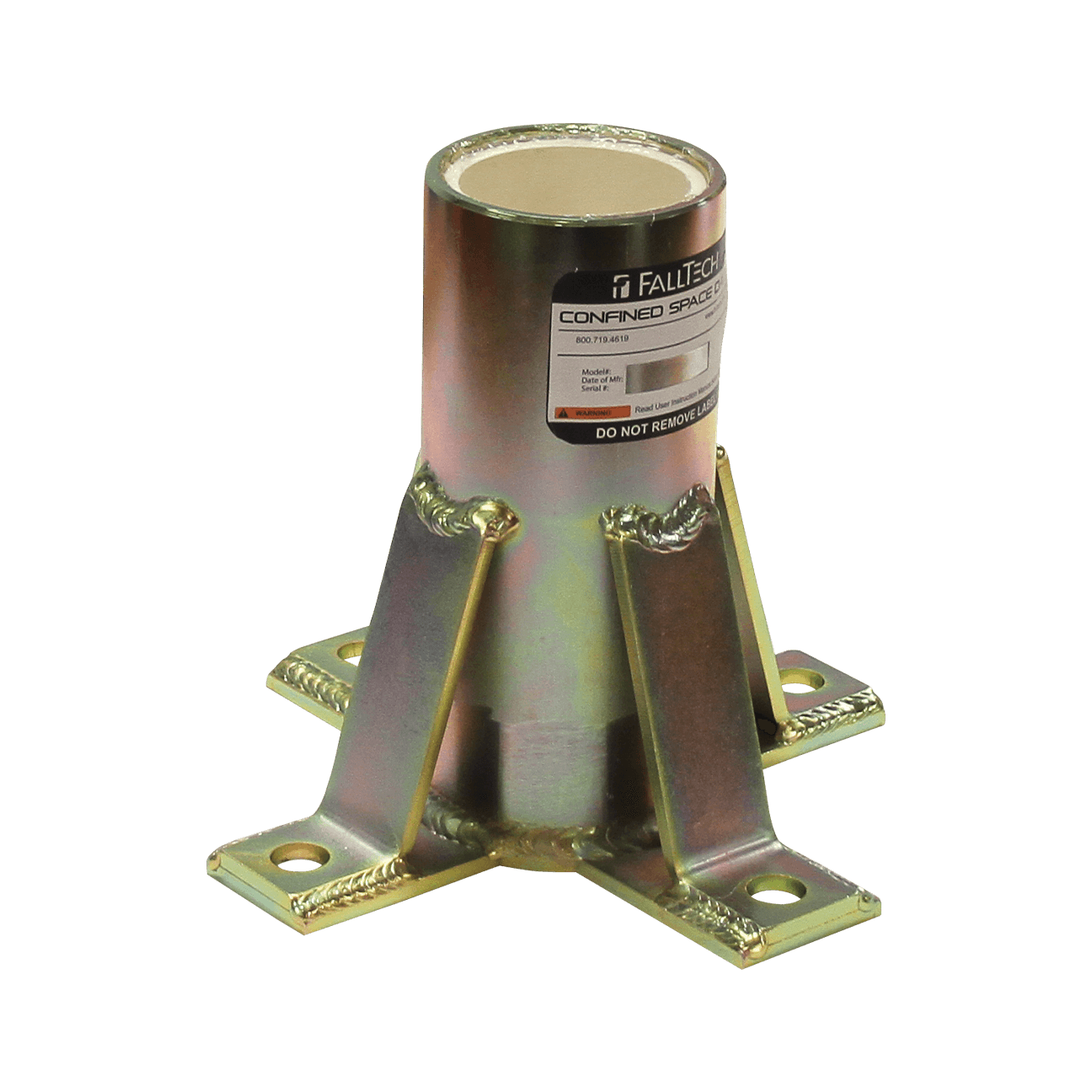

Floor-mount Plated Steel or Stainless Steel Bolt-on Fixed Davit Base

Features

• Permanently installed davit base solution is ideally suited for recurrent access locations
• Bolt-on design for existing steel and concrete installation.
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
• Plated steel construction throughout; also available in stainless steel
• User-supplied fasteners required for installation
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions

Product Specifications

• Plated or Stainless steel construction
• Davit Base; plated carbon or stainless steel
• Sleeve Insert; PVC pipe

• Rated Capacity; 620 lb at a minimum 4:1 design factor
• Mast Moment Proof Load; 6,167 ft. lb
• Mast Rotation; 360°
