Description

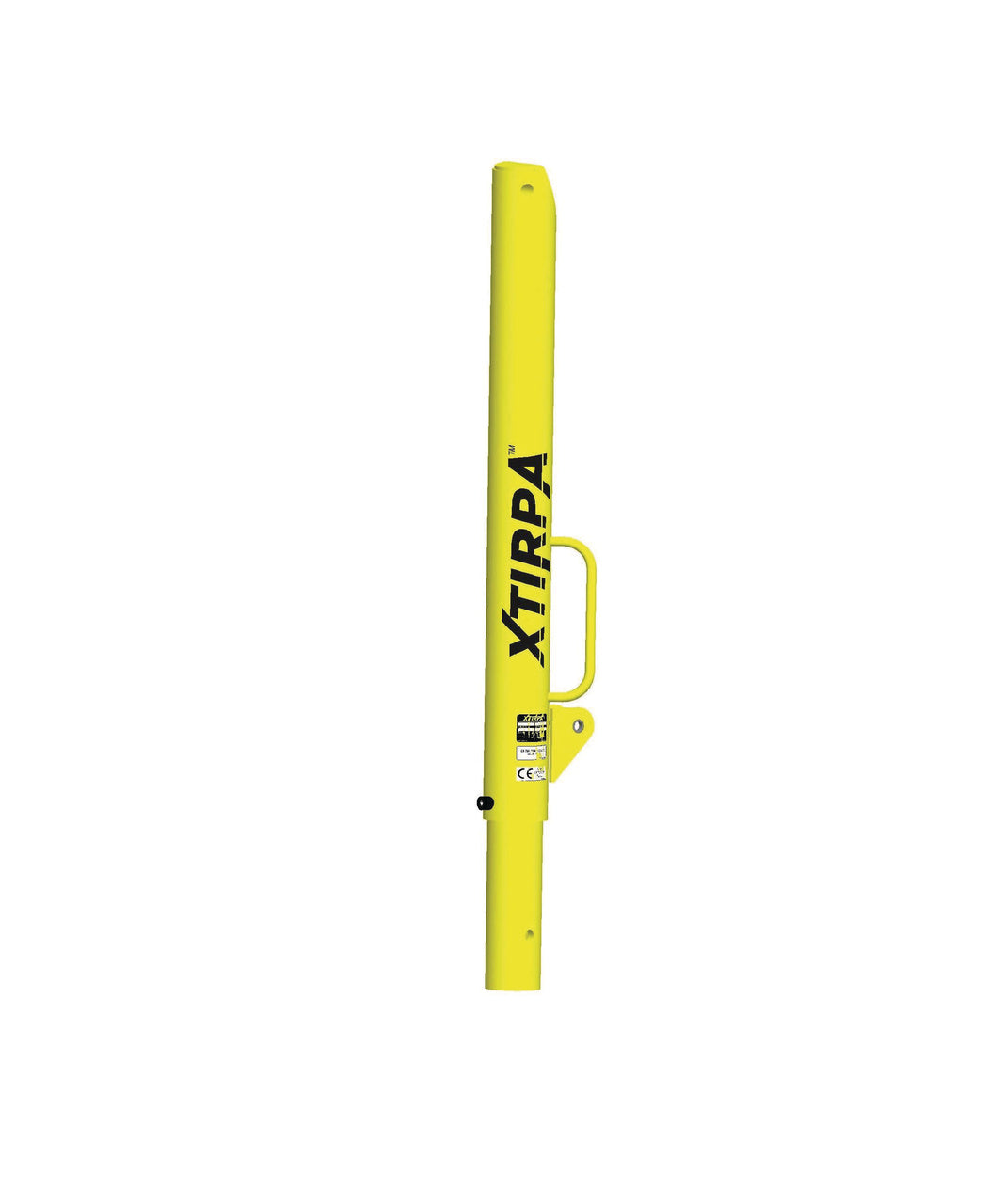

Mast for confined space fall protection and retrieval to be used in conjunction with 24" davit arm IN-2210 and any Xtirpa System mast base or system. 45" height. Unit weight: 22 lbs.

The 3" Diameter Mast is used for multiple davit systems to provide a reliable connection to the base. This mast can be inserted into wall adapters, manhole collar systems, Hitch Mounts, and various floor adapter Bases.

Features

The 3" Diameter Mast can be used on the following davit systems; The Adapter Base System-24" Reach, Hitch Mount System, Adjustable Wall Adapter System, and The Manhole Collar System.

This 3" Diameter Mast would be attached to the base for the davit system and then attach to the arm of the davit. (IN-2003).

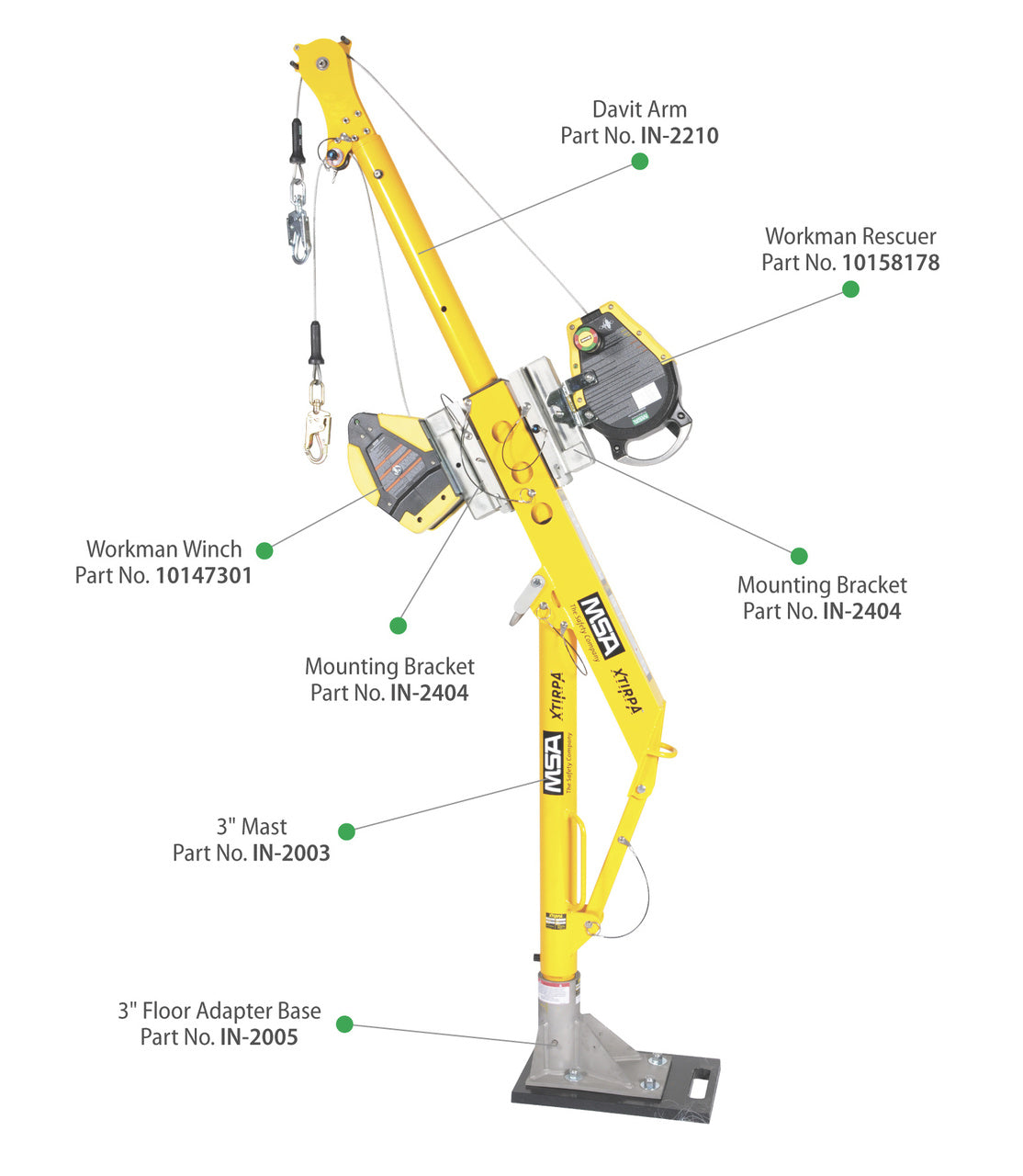

MSA XTIRPA Adapter Base System- 24", Page 4-5

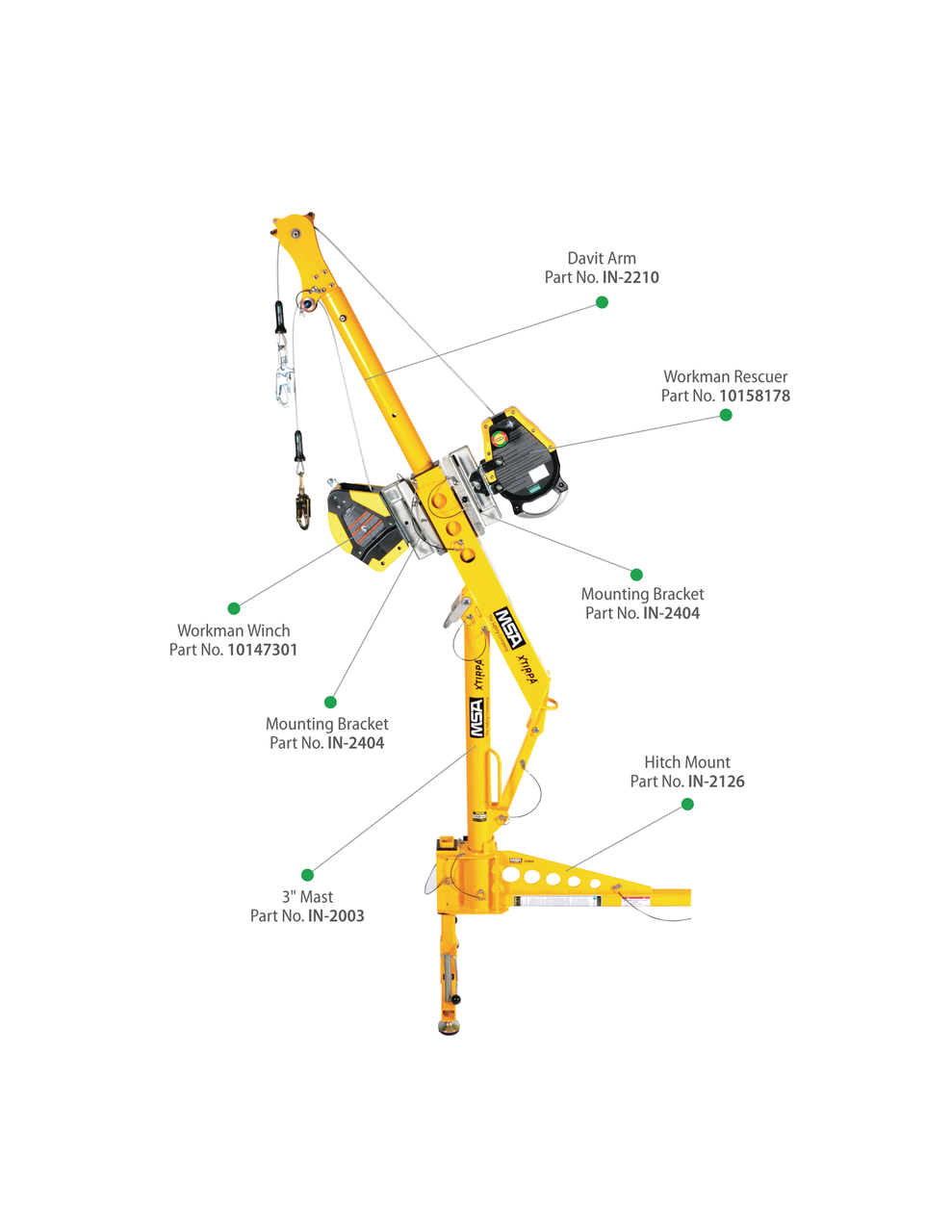

MSA XTIRPA Hitch Mount System  Page 8-9

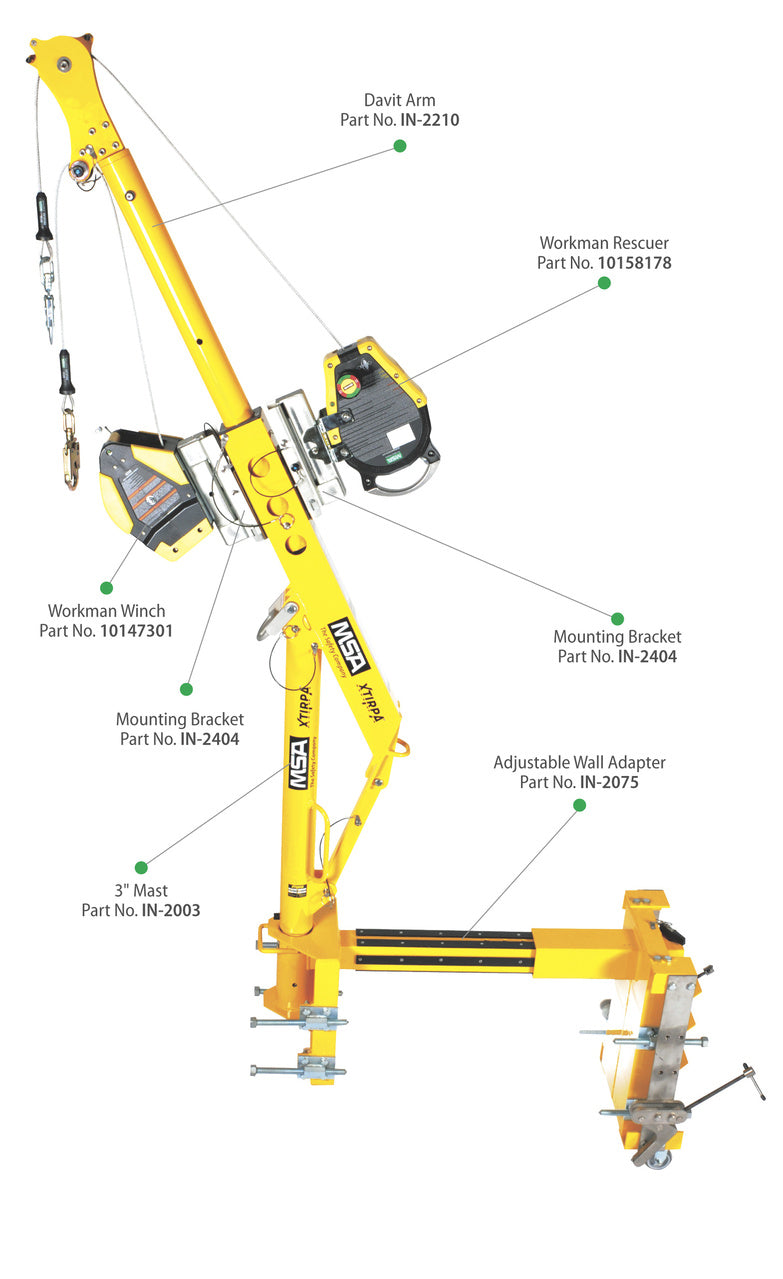

MSA XTIRPA Adjustable Wall Adapter System  Page 10-11

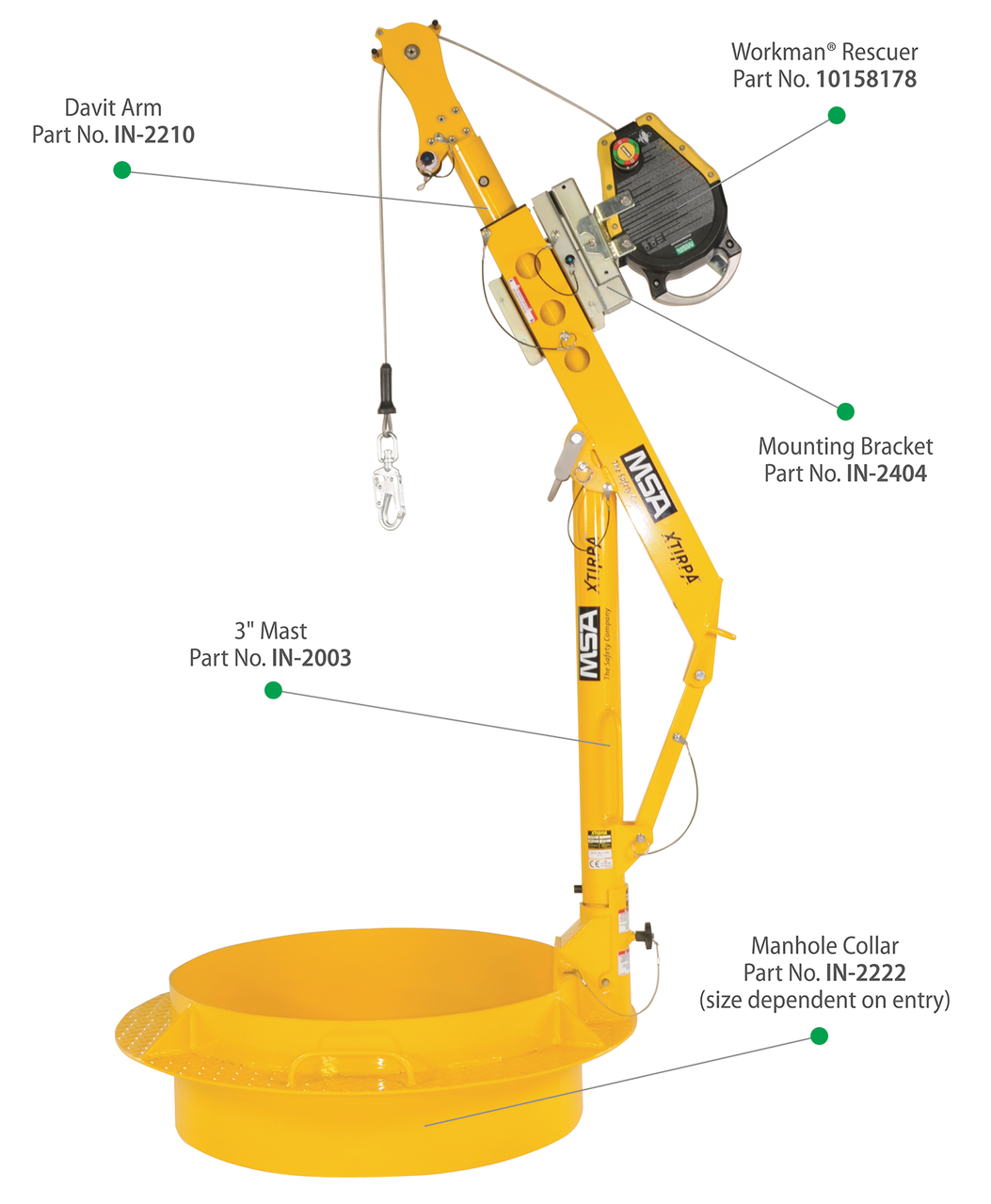

MSA XTIRPA Manhole Collar System  Page 12-13
