Description

Adapter Base Systems are fixed anchorage connectors used for vertical entry into confined spaces. The adapter base is permanently affixed to an existing structure. The many different adapter base options can accommodate any work environment. This system is designed for work areas that require regular setup and teardown.

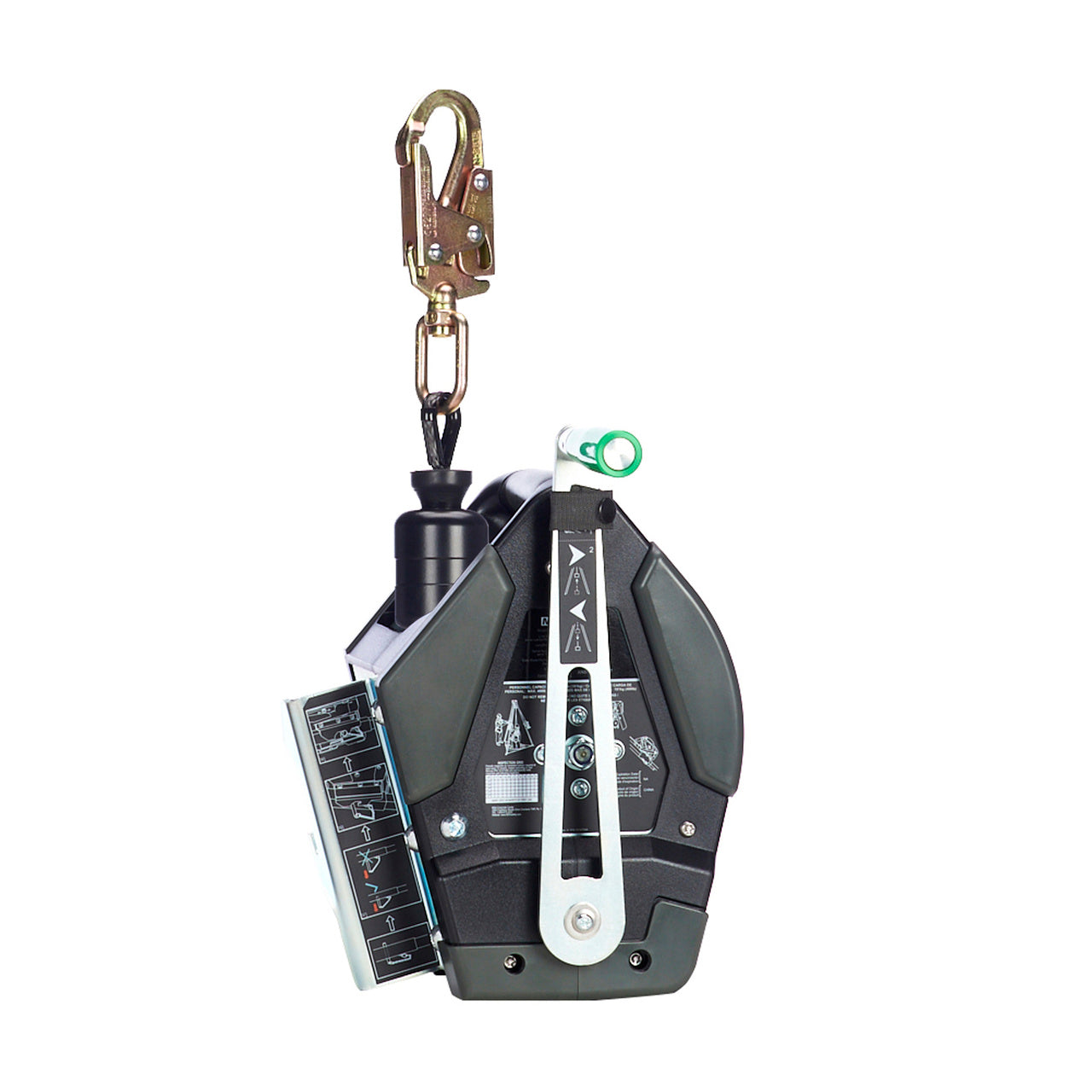

Workman Rescuer SRL. Fast, easy and intuitive fall protection SRL with integral bi-directional retrieval capability. Stainless steel cable, 50 ft. (16m).

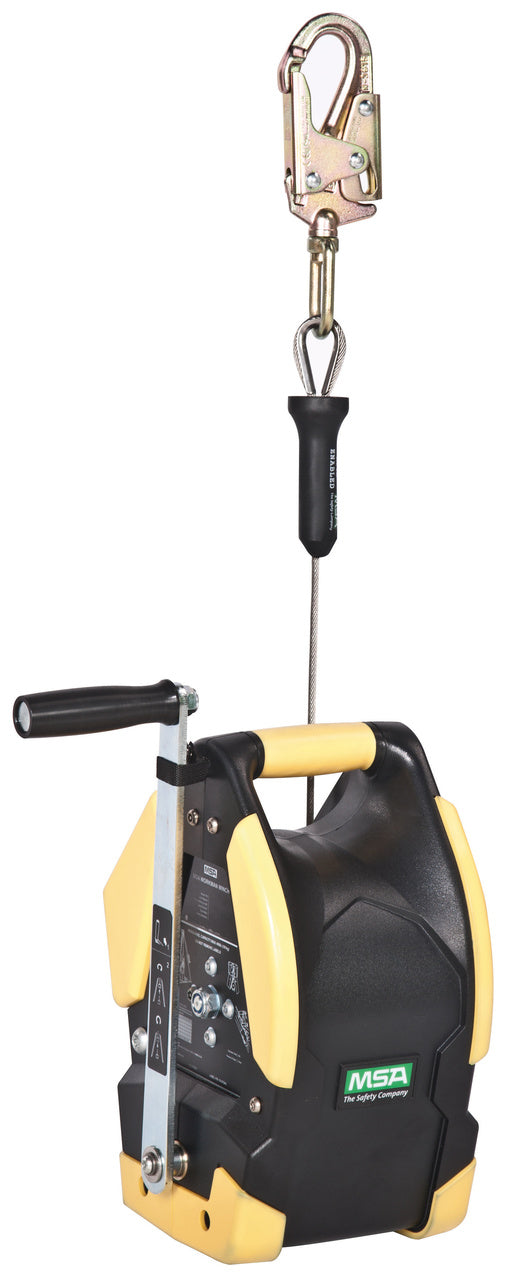

Workman Winch SRL.The maximum workload is 400 lbs. for personnel and 620 lbs. for materials. It Includes integral RFID technology and a self-locking swivel 36C snap-hook. Stainless steel cable, 65 ft. (20m).

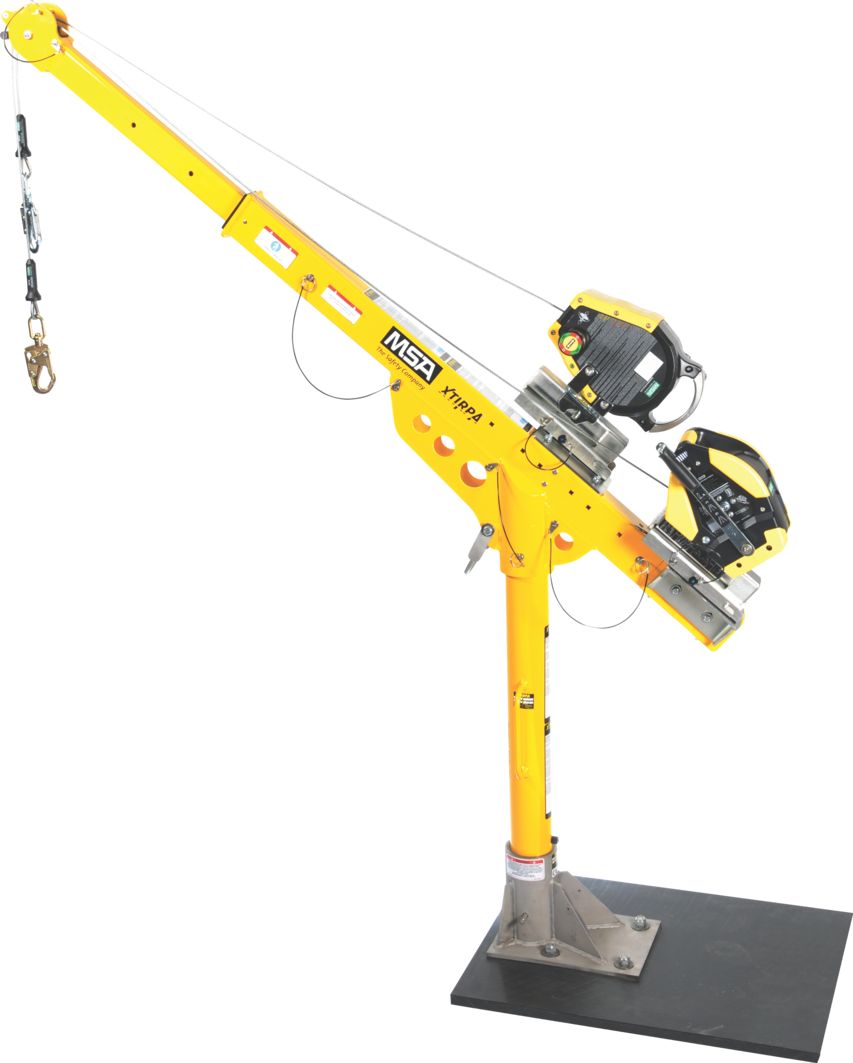

Weight Capacity; 360 lbs. (163 kg) as pictured with Workman Rescuer

Features

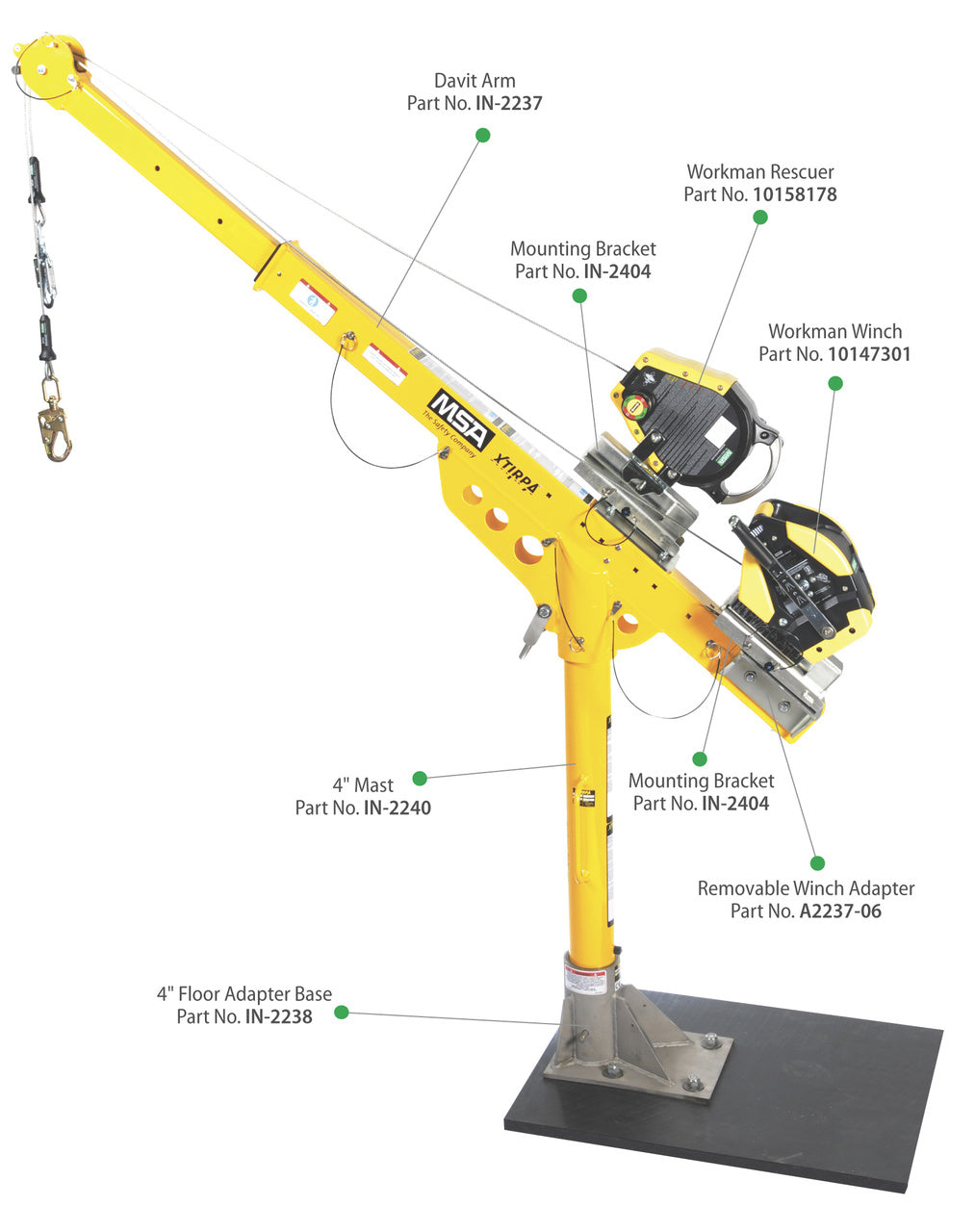

Base Model

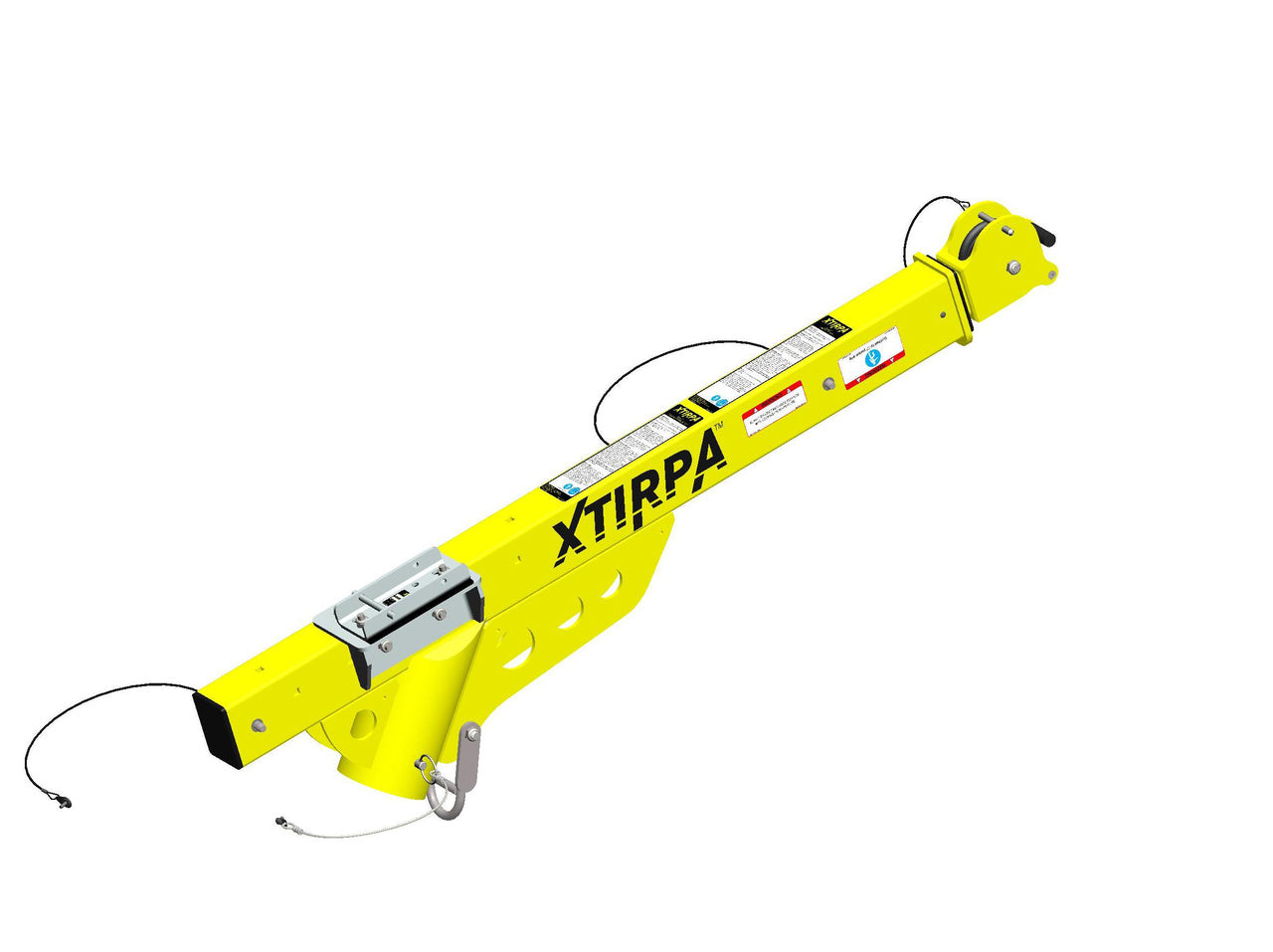

• Davit Arm 30" to 48" Reach (IN-2237)

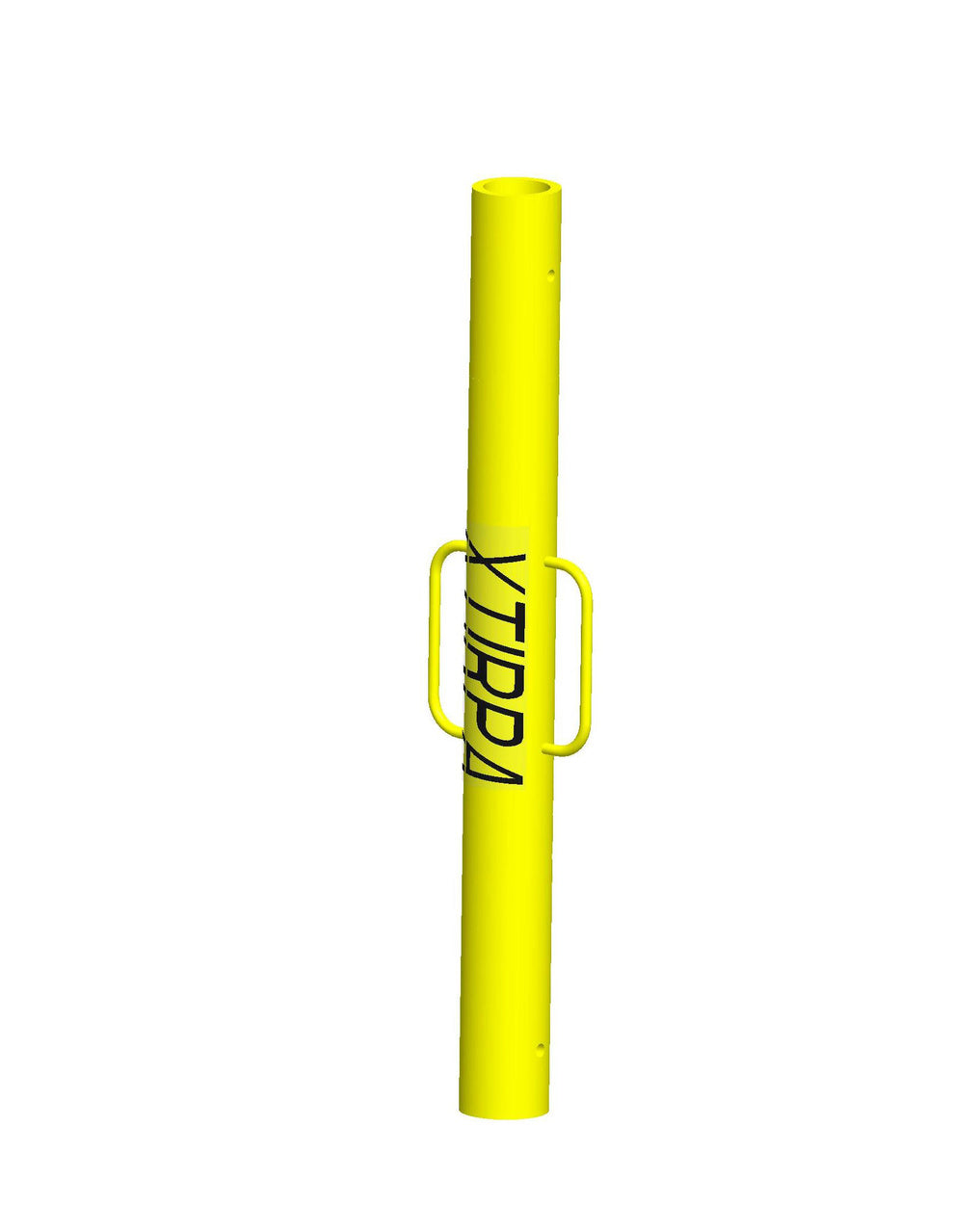

• 4" Mast for Davit Arm 42" in height (IN-2240)

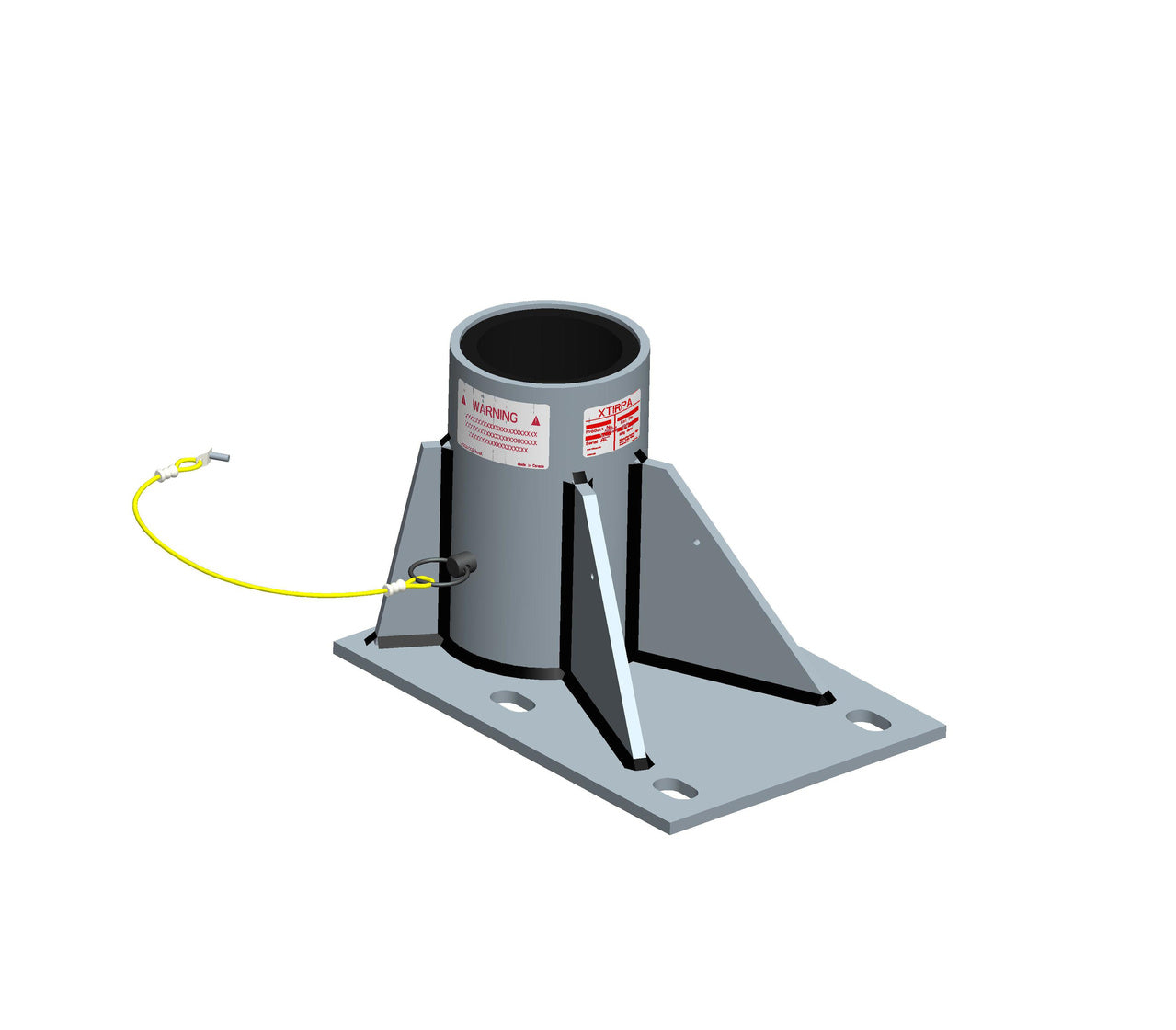

• 4" Zinc Plated Floor Adapter Base (IN-2302) ** Bolt not included**

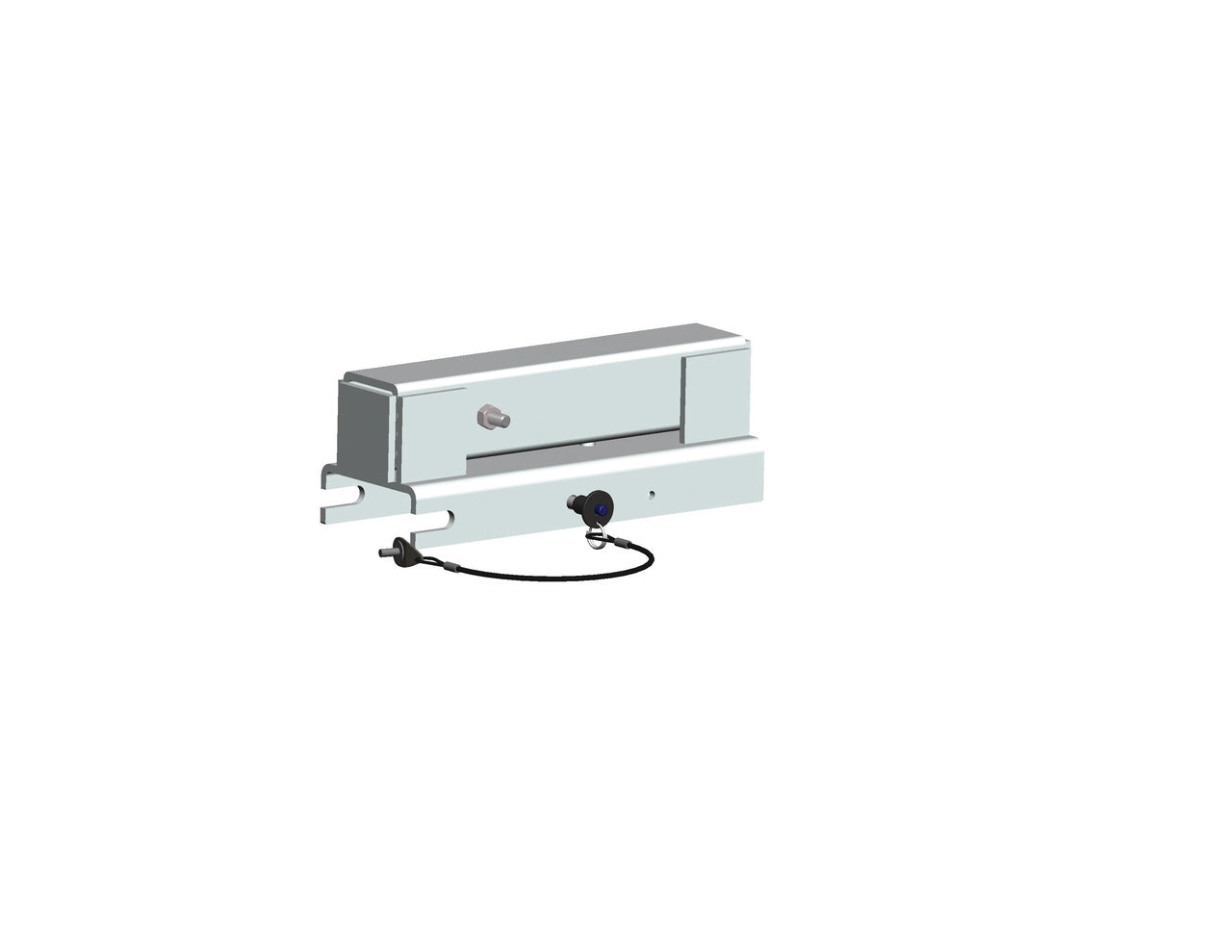

• Rescuer SRL 10158180 w/ corresponding attachment bracket (IN-2404)
• (Optional) Workman Winch (10147301) w/ corresponding attachment bracket  (IN-2404)

Customization

• There is a variety of adapter bases ranging from, center mount floor adapters(IN-2254), Flush in floor adapters (IN-2266), mural adapters (IN-2253) etc.
• Adapter caps (IN-2272) to prevent objects from falling into the base
• 4" to 3" Reducers to make the base compatible with 3" Masts like the 24"Adapter Base System.

All of the customization options and additional parts can be found in the SupplyNow Davits section. A list of compatible parts for this Davit System can be found in the link below.

MSA XTIRPA MSA XTIRPA Adapter Base System 30"-48" Reach  Page 14-15
