Description

Pole Hoist Systems are portable anchorage connectors used for vertical and horizontal entry into confined spaces. When attached to an anchor point, the Pole Hoist provides retrieval and fall protection when limited overhead clearance is present. The Pole Hoist can also be configured for horizontal entry applications such as lifting, lowering and fall protection.

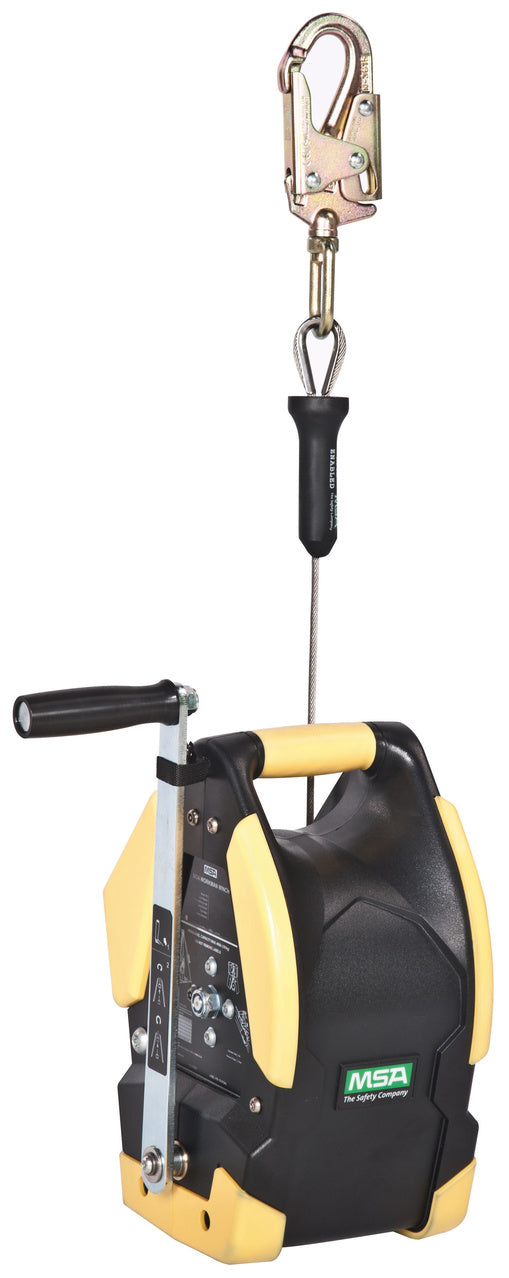

Workman Rescuer SRL. Fast, easy and intuitive fall protection SRL with integral bi-directional retrieval capability. Stainless steel cable, 50 ft. (16m).

Workman Winch SRL.The maximum workload is 400 lbs. for personnel and 620 lbs. for materials. It Includes integral RFID technology and a self-locking swivel 36C snap-hook. Stainless steel cable, 65 ft. (20m).

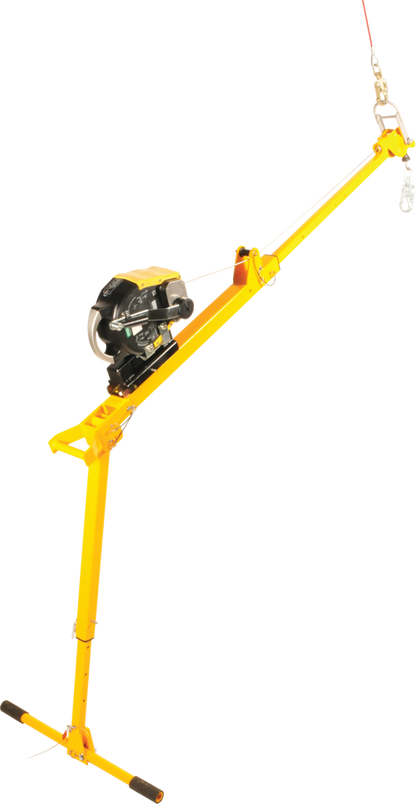

Weight Capacity; 360 lbs. (163 kg) as pictured with Workman Rescuer

Features

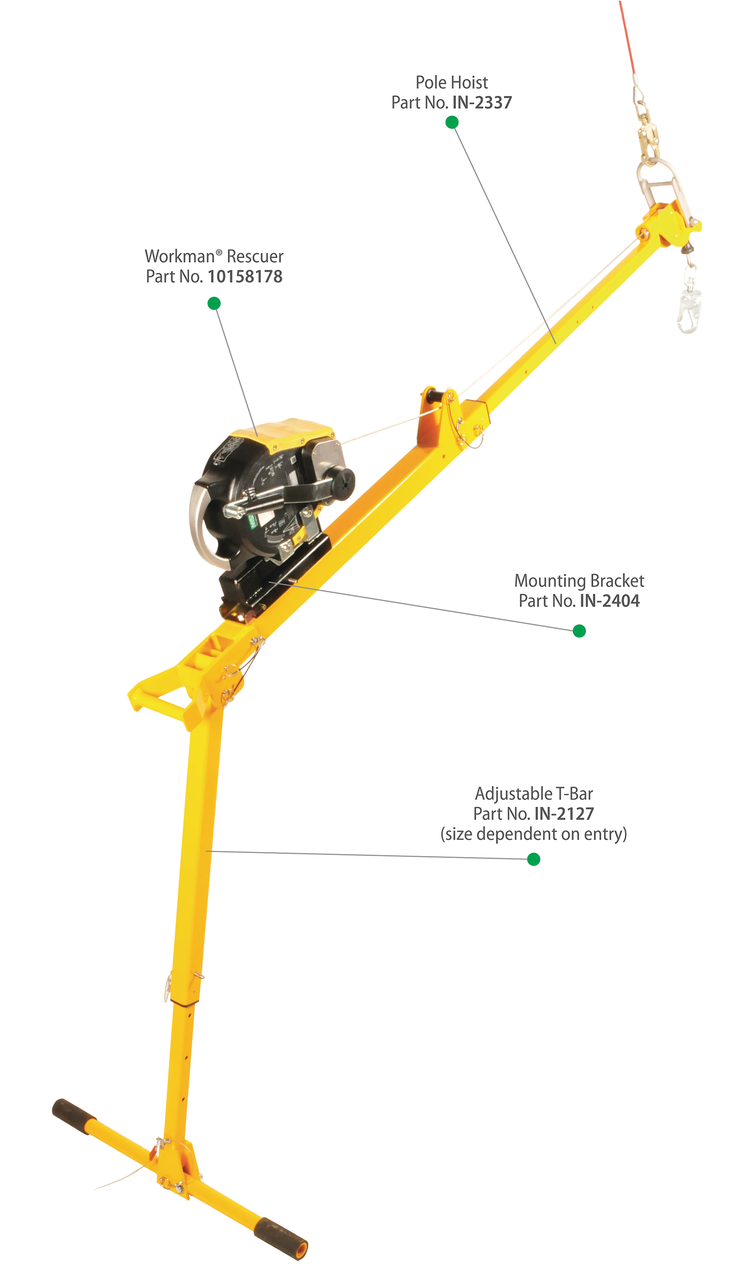

Base Model

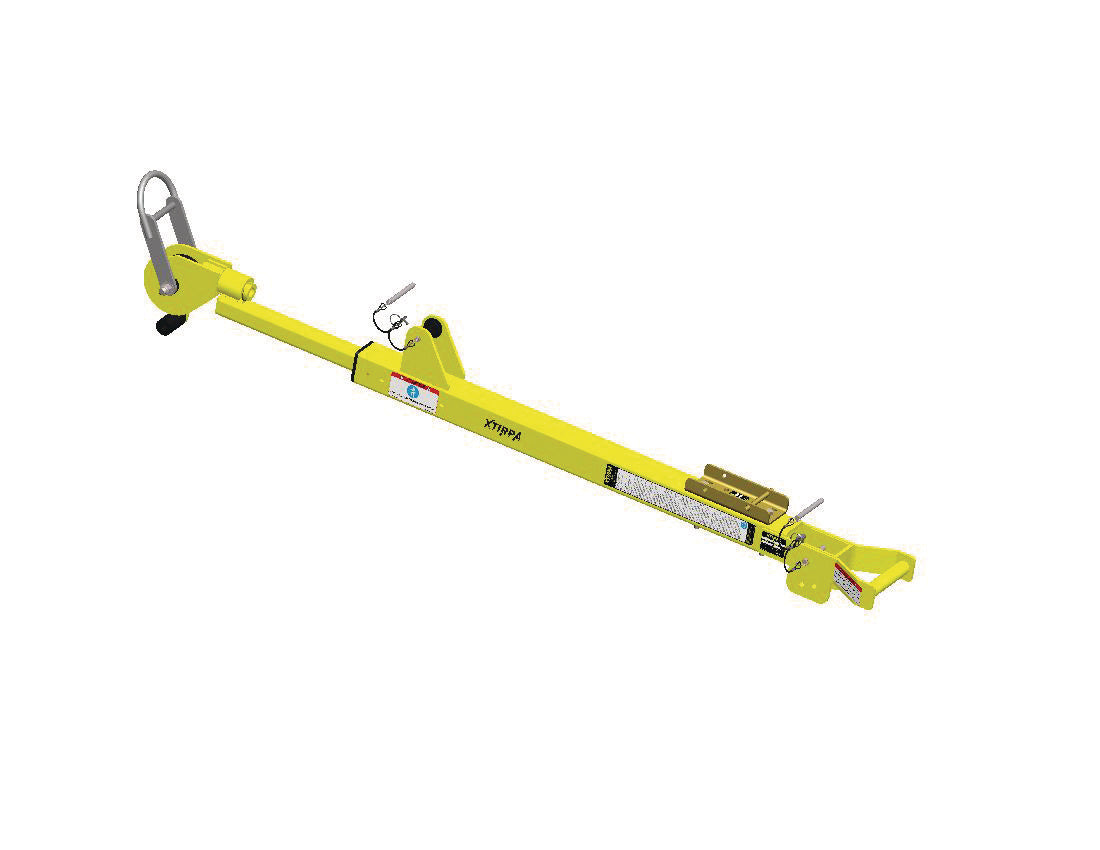

• 48"-72" Pole Hoist (IN-2337) or 57"-102" Pole Hoist (IN-2338)

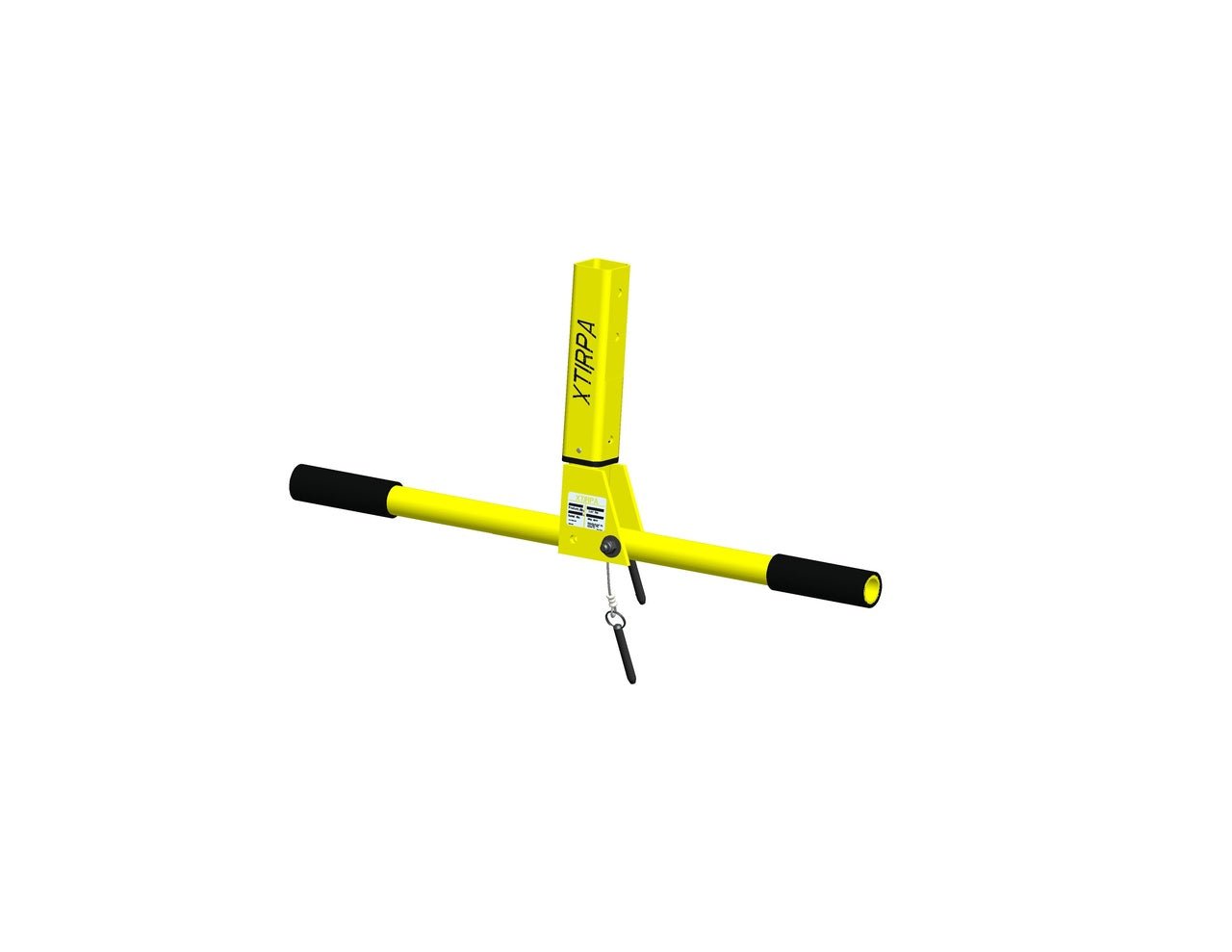

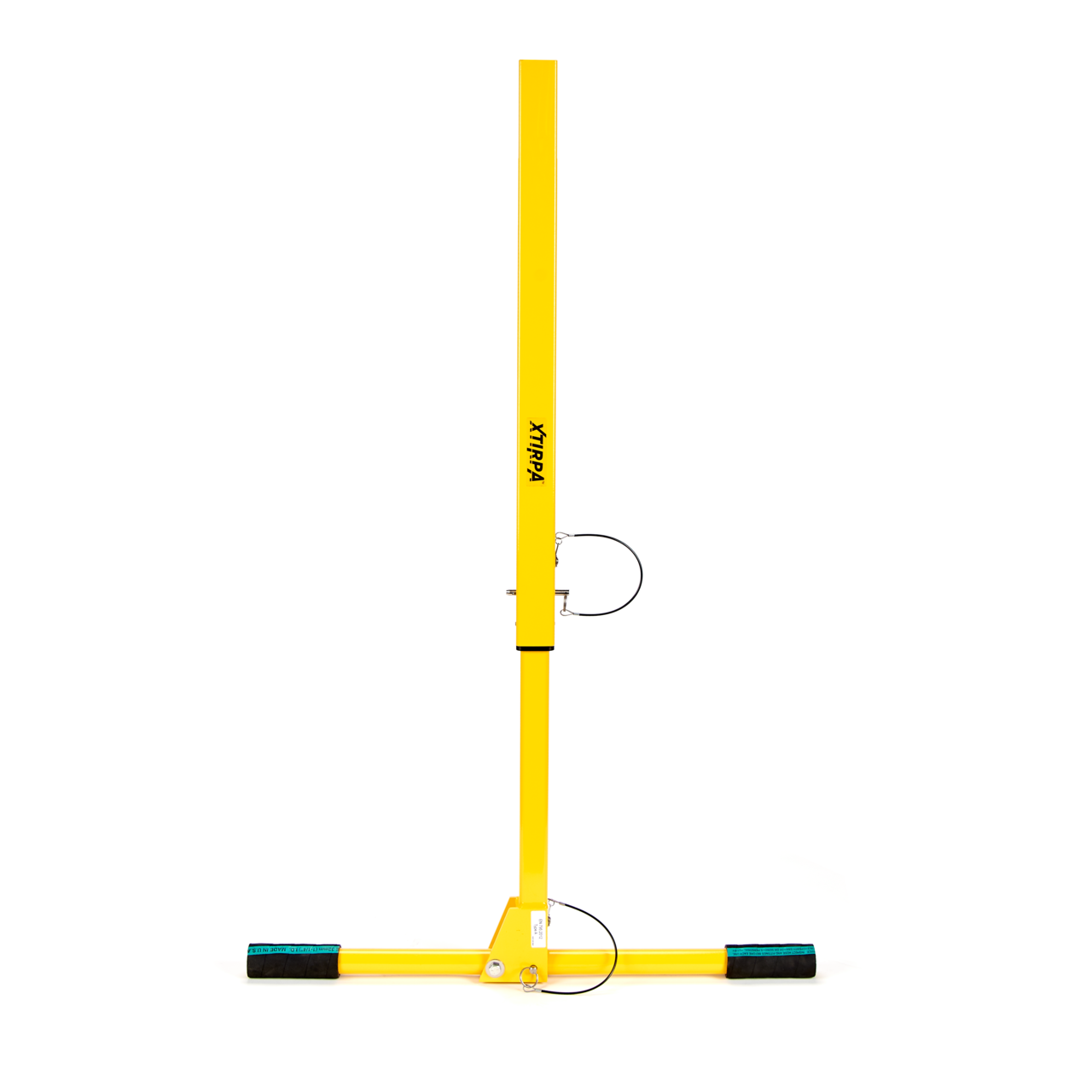

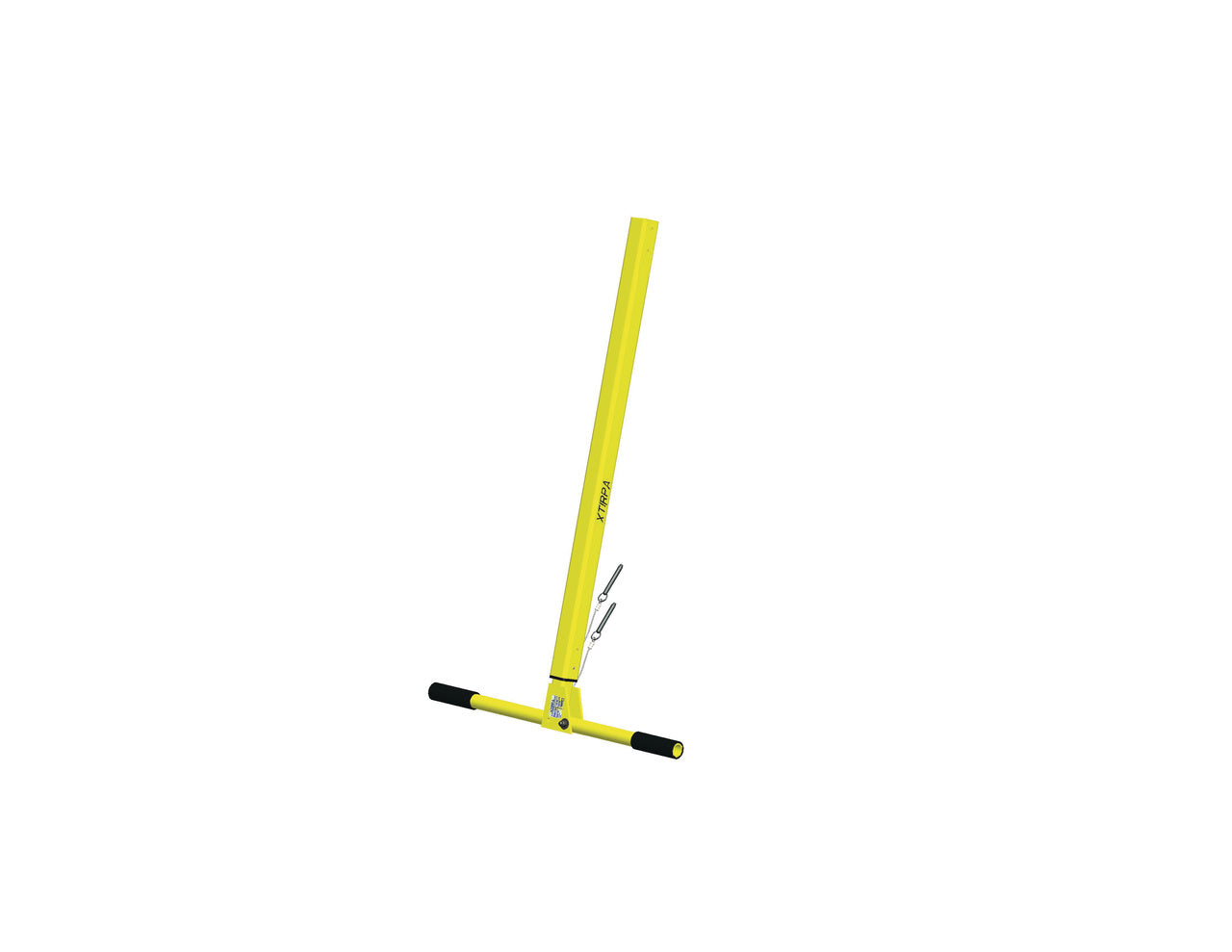

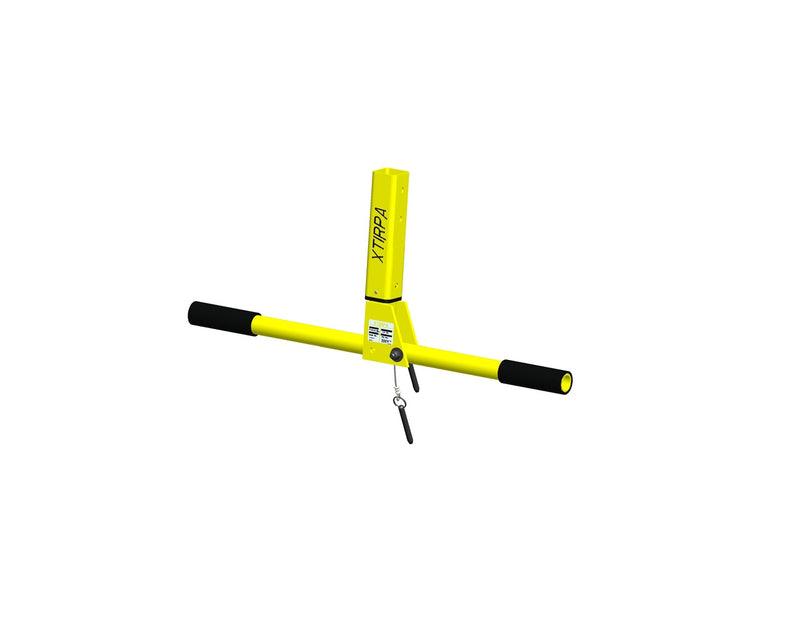

• Adjustable T-bar 12"-14" (IN-2274) or 47"-75" (IN-2256)

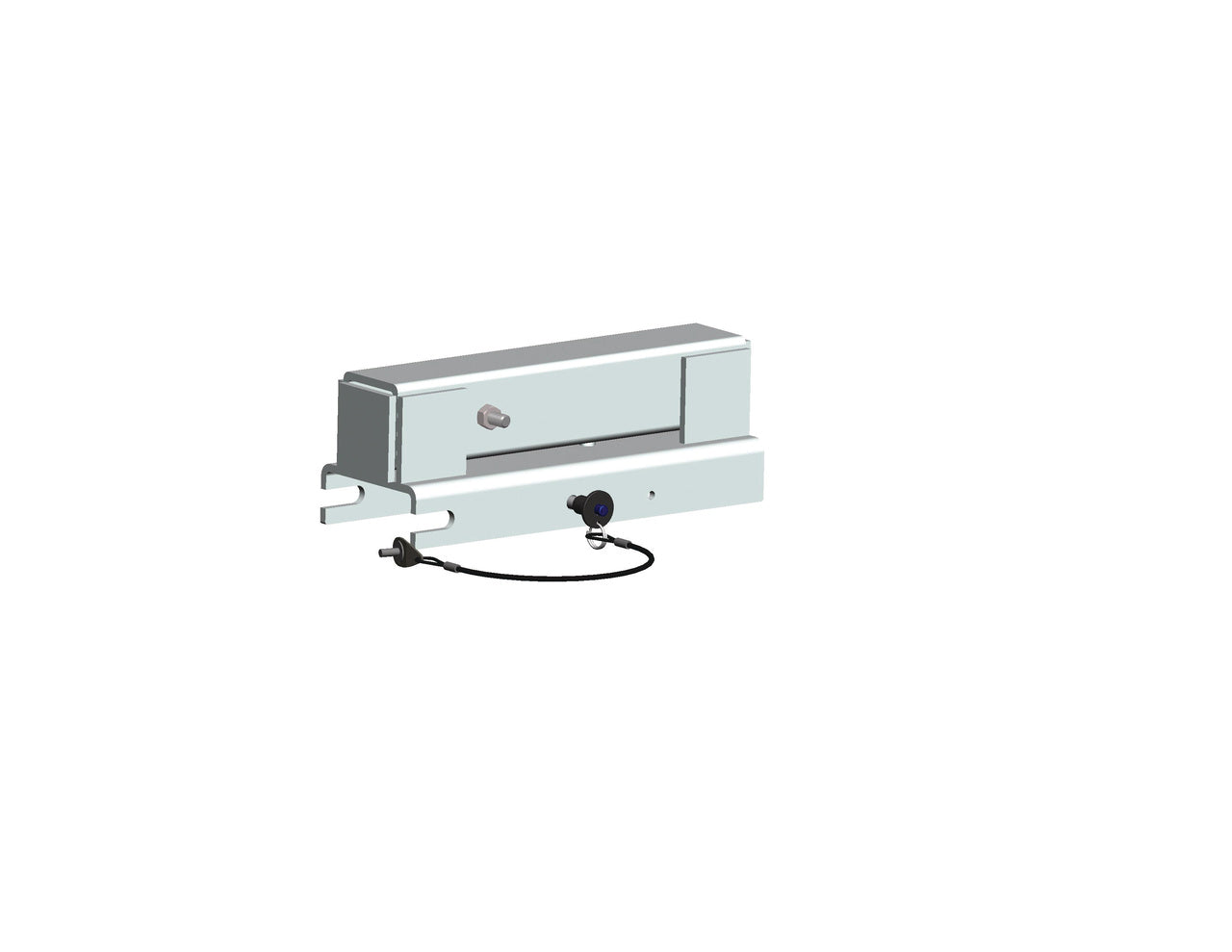

• Rescuer SRL 10158180 w/ corresponding attachment bracket (IN-2404)

Customization

• There is a jib adapter for lateral entry. (IN-2241)
• Ring adapters (IN-2087) for connecting the pole hoist system to a wall or ceiling.
• Flange adapter to anchor the pole vertically or horizontally that can support 5000 lbs as an anchor. (IN-2242)
• other pole hoists  (IN-2337) and T-bar lengths can be sold separately(IN-2274).

All of the customization options and additional parts can be found in the SupplyNow Davits section. A list of compatible parts for this Davit System can be found in the link below.

MSA XTIRPA MSA XTIRPA Pole Hoist system  Page 16-17
